During operational deployment, this insulator fulfills two essential functions: providing electrical isolation for conductors and resisting diverse mechanical forces. It exhibits excellent torsional and flexural strength, along with superior fatigue resistance, enabling it to endure repetitive mechanical stress from routine operations. End fitting alignment demands absolute precision, and the core rod straightness must meet industry-leading benchmarks. Any misalignment could lead to operational complications including arcing, uneven wear patterns, and potential grid instability.
Electrical performance is enhanced through advanced composite materials delivering high breakdown strength and minimal dielectric loss, ensuring stable operation even during transient over-voltage conditions. Environmental durability is engineered to withstand the corrosive impact of humid tropical air, erosive effects from vegetation-rich environments, and industrial chemical contaminants prevalent in developing regions.
Standards
• IEC 61952-2008
• IEC 62231
• ANSI C29.18
Specifications

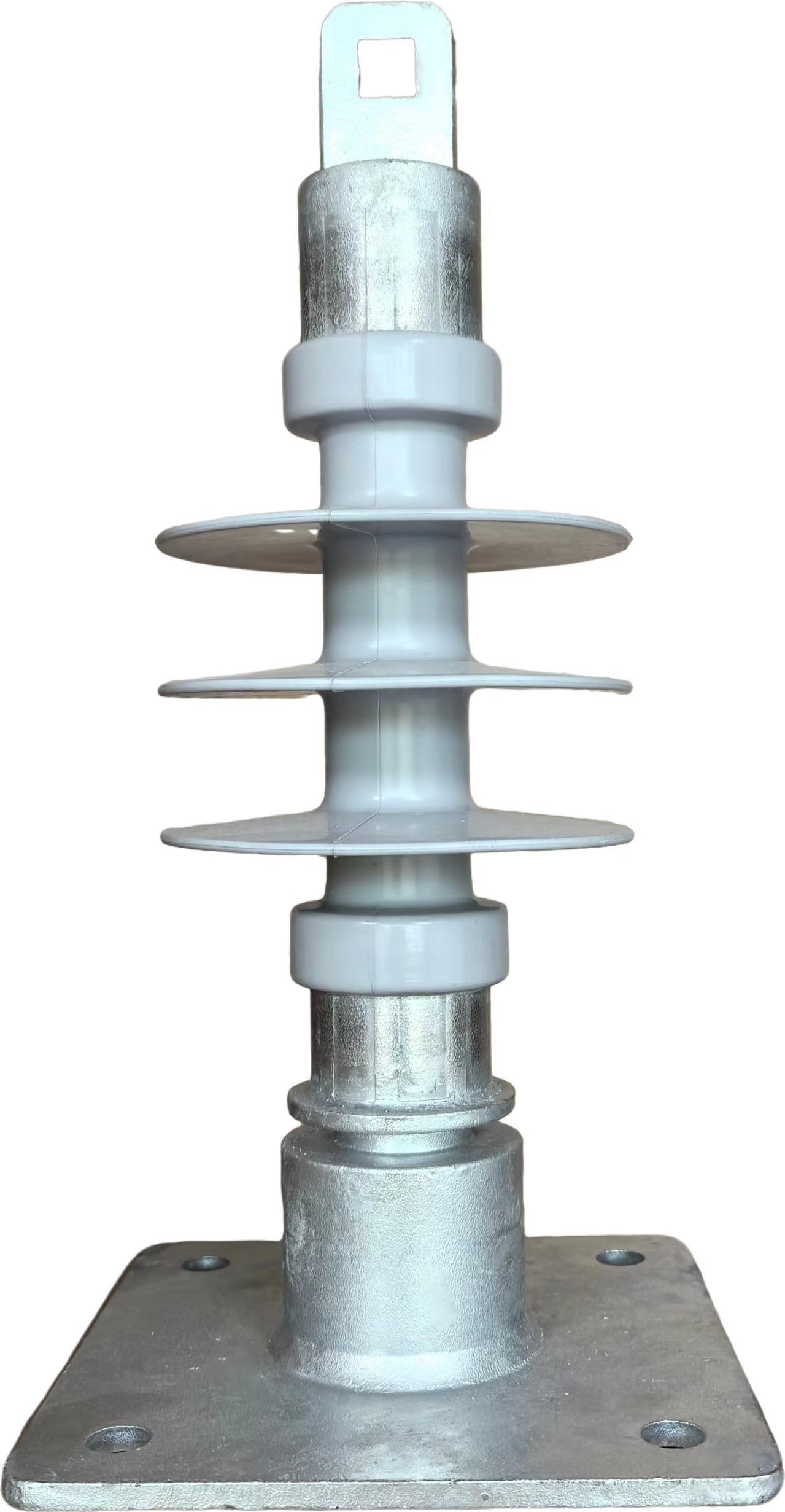

33kV Line Post Insulator with Large Sheds, Flange Mounting, Square-hole Single Ear Connection
Application
Primarily deployed within 11kV & 33kV power distribution systems across Southeast Asian territories, this insulator is securely mounted on pole and tower structures, positioned between the tower and drop-out fuse units. Its fundamental purpose is to provide enhanced electrical insulation and robust mechanical support while serving as a wildlife protection barrier. This configuration not only safeguards drop-out fuse operations but also contributes significantly to overall grid stability. The product plays a vital role in power distribution from substations to end-user connections, particularly in regions with high wildlife activity.
Why This Insulator is Essential for Southeast Asia
In most global regions, drop-out fuses come equipped with standard insulators providing adequate electrical isolation between conductors and the ground. Consequently, in many countries, drop-out fuses are installed directly on pole and tower structures without additional insulation barriers.
However, Southeast Asian nations including Thailand face distinctive environmental challenges. These regions feature extensive forest coverage and abundant wildlife populations. Species such as snakes, lizards, rodents, and squirrels frequently ascend tower structures. When these animals climb onto the factory-installed insulators of drop-out fuses, their bodies can bridge the electrical gap between conductors and the ground, creating short circuits that trigger tripping incidents. Such disruptions compromise power supply stability for residential consumers and impact industrial production continuity.
By installing this specialized insulator between the tower and drop-out fuse, an effective physical barrier is established. This obstacle creates a formidable challenge for wildlife attempting to traverse between the tower structure and the fuse assembly. The implementation significantly reduces short-circuit incidents caused by animal intrusion, enhancing grid reliability in wildlife-dense environments.
Features
Superior Wildlife Protection Engineered specifically to address the unique challenges posed by Southeast Asian wildlife populations, the extended shed design creates an insurmountable barrier for small animals. This specialized protection minimizes animal-induced fault incidents, reducing maintenance requirements and ensuring continuous power delivery to communities and industrial facilities.
Optimized Design for Drop-out Fuse Integration Through advanced finite-element analysis and material science innovation, the structural configuration and material composition are precisely calibrated to accommodate drop-out fuse mounting requirements. The flange-to-insulator interface incorporates a purpose-designed groove for large shed installation, providing enhanced wildlife protection compared to standard line post insulators.
Enhanced Environmental Durability Equipped with hydrophobic coatings, corrosion-resistant alloys, and UV-stabilized materials, this insulator performs reliably across diverse environmental conditions. Whether subjected to the intense tropical heat and humidity of Thailand or the varied climatic conditions throughout Southeast Asia, it maintains structural integrity and electrical performance.
Broad Compatibility The design accommodates various mounting configurations, environmental exposure levels, and electrical load scenarios, allowing seamless integration into different grid architectures. Particularly suited for systems requiring wildlife protection in forest-dense regions, it delivers consistent performance across varying operational environments.
Standard Insulator Advantages As a line post insulator, this product inherits all the advantages of conventional composite insulators including high mechanical strength, excellent electrical properties, low maintenance requirements, and long service life, while adding specialized wildlife protection capabilities.
