Surge arresters are critical devices designed to protect electrical power systems from transient overvoltages. These sudden surges can result from natural events such as lightning strikes or from switching operations within the power grid. Without effective surge protection, sensitive equipment like transformers, switchgear, and industrial machinery can suffer severe damage, leading to costly repairs and power outages.
For decades, the electrical industry has relied on zinc oxide arresters with gaps—traditional surge arresters that combine ZnO varistors with series spark gaps—to divert harmful surge currents safely. However, these devices come with limitations, including slower response times, arc-related wear, and maintenance demands.
The gapless zinc oxide surge arrester represents the next generation of surge protection technology. These devices use advanced Metal Oxide Arrester (MOA) technology to eliminate spark gaps, enabling faster, safer, and more reliable operation. Today, gapless MOAs are widely deployed in medium and high voltage systems, including popular classes such as the 34kV surge arrester for distribution networks and the 132kV surge arrester used in transmission systems.
What Is a Gapless Zinc Oxide Surge Arrester?
Definition and Key Features

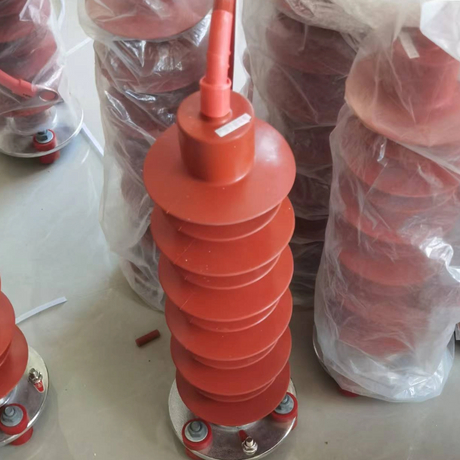

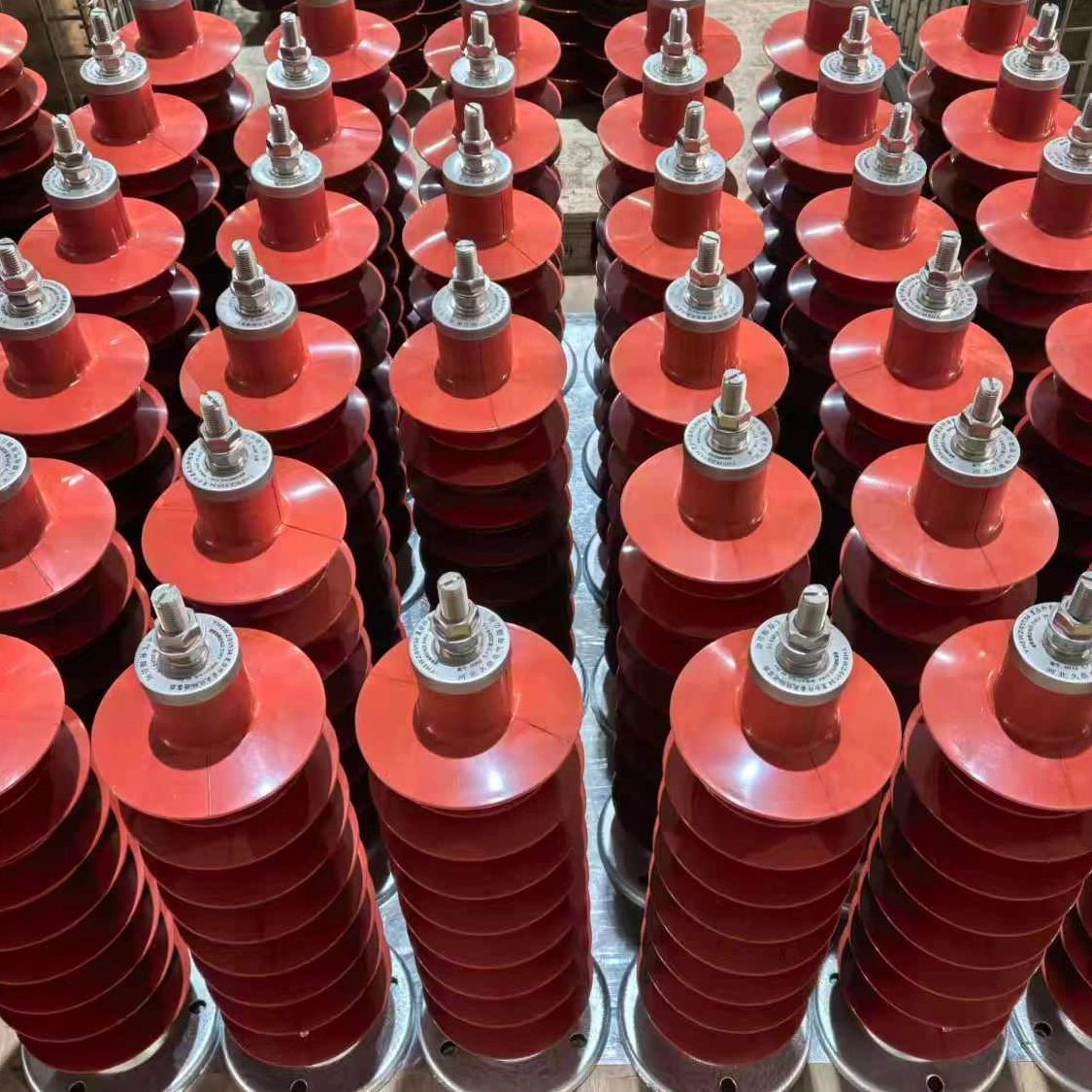

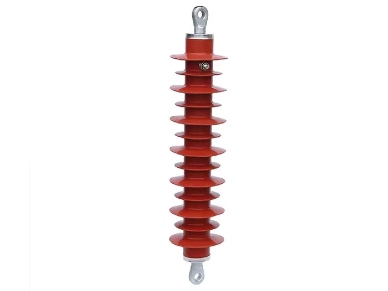

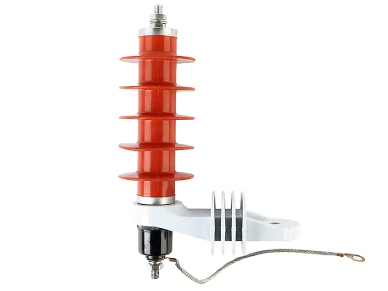

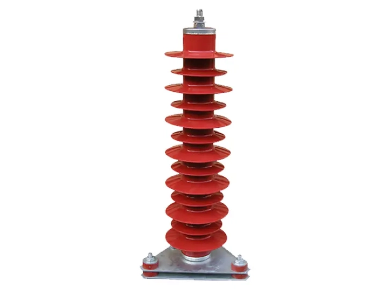

A gapless zinc oxide surge arrester is an overvoltage protective device that uses zinc oxide varistor discs stacked without the traditional series spark gaps. The absence of air gaps is a major departure from older designs, enabling these devices to clamp voltage surges immediately and efficiently.
Key features include:
Nonlinear ZnO varistor elements
Robust and weatherproof housing (porcelain or polymer composite)
Compact design without spark gaps or moving parts
High energy absorption capacity with fast response
Structural Components
The arrester’s core consists of many thin zinc oxide discs, compressed together to form a low-resistance path during overvoltage conditions. Each ZnO disc acts as a semiconductor varistor with highly nonlinear voltage-current characteristics.

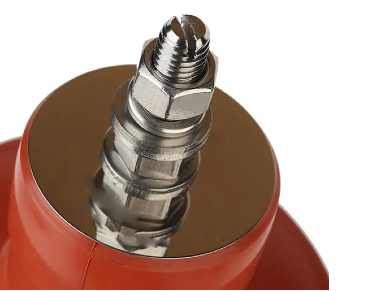

These discs are enclosed in a sealed, insulating housing designed to withstand outdoor environmental factors such as rain, UV radiation, pollution, and temperature extremes. The device also includes metal terminals at both ends for electrical connection to the power system.
Differences from Traditional Gapped Arresters
Traditional zinc oxide surge arresters incorporated a small air gap connected in series with the ZnO blocks. When a surge occurs, the voltage rises until it reaches the gap's breakdown voltage, causing an electric arc to form and conduct the surge current to ground.
While effective, this spark gap results in:
Arcing that causes electrode erosion and material degradation
A delayed response compared to direct ZnO conduction
Periodic maintenance needs to inspect and replace worn parts
In contrast, gapless zinc oxide arresters eliminate the spark gap entirely. Surge current conduction occurs directly through the ZnO varistors without waiting for gap ionization, resulting in immediate surge suppression and less wear on components.
Working Principle
Non-linear Resistance of Zinc Oxide
The unique property that enables gapless MOAs to protect electrical systems is the nonlinear voltage-current characteristic of zinc oxide. ZnO varistors remain highly resistive under normal voltage conditions, allowing only a tiny leakage current.
When a transient overvoltage appears, the ZnO material’s resistance suddenly drops, allowing a large surge current to flow through the arrester and divert the excess energy safely to ground.
Behavior Under Normal Voltage and Surge Conditions
Normal Operation: The arrester acts like an insulator with very high resistance, avoiding any interference with regular system voltage or current flow.
Surge Event: When voltage rises beyond a predefined threshold (called the protective level), the ZnO varistors become conductive almost instantly, channeling the surge current away from vulnerable equipment.
Surge Diversion Without Arc Discharge
The gapless design removes the need for an arc discharge, unlike the gapped arresters that rely on spark gaps to initiate conduction. This makes the surge arrester inherently safer and more reliable by eliminating arc-related wear and damage.
Self-Recovery After Surge Passage
Once the surge has passed, the ZnO varistors automatically return to their high resistance state without any damage or intervention required. This self-healing feature allows gapless arresters to handle multiple surge events over their service life without performance degradation.
Advantages of Gapless MOA
Superior Energy Absorption Capacity
Gapless arresters are engineered to absorb high-energy transient surges caused by lightning or switching phenomena. The ZnO discs dissipate this energy as heat, protecting downstream equipment from potentially catastrophic voltage spikes.
The capacity of these arresters varies depending on the voltage class. For example:
Ultra-Fast Response Time
Due to their gapless nature and ZnO varistor properties, these arresters respond in microseconds to voltage surges. The fast reaction time minimizes voltage spikes and reduces the electrical stress imposed on system components.
No Spark Gaps, No Arcing
The elimination of spark gaps means no arcing, which significantly improves safety and reliability. Arcing in gapped arresters can cause erosion and increase fire hazards. Gapless arresters avoid these issues, contributing to longer service life and reduced downtime.
Low Maintenance Requirements
Gapless MOAs require less maintenance because there are no spark gaps or mechanical parts that wear out over time. Utilities and industrial users benefit from lower inspection costs, fewer replacements, and enhanced operational availability.
Compact and Lightweight Design
Modern gapless zinc oxide arresters are more compact and lighter than older gapped designs. This facilitates easier installation and replacement, especially in retrofit situations or locations with limited space.
Use Cases and Application Scenarios
High-Voltage Transmission Lines
In high-voltage networks, such as those employing 132kV surge arresters, gapless MOAs protect critical assets like transformers, circuit breakers, and busbars from damaging lightning-induced or switching surges. Their robust design ensures the stability of transmission systems, even in areas prone to severe weather.
Renewable Power Systems
Wind farms, solar plants, and other renewable energy installations increasingly rely on gapless arresters to protect inverters, converters, and transformers. These systems often face variable power quality and transient surges, making fast and reliable surge protection essential.
Smart Grids and Automation Systems
As power grids become smarter and more automated, the complexity and sensitivity of grid control equipment increase. Gapless zinc oxide arresters provide the necessary fast, reliable protection to safeguard digital control and monitoring devices from surge damage.
Urban and Industrial Substations
Dense urban and industrial environments require dependable surge protection to maintain power quality and safety. Gapless MOAs help prevent downtime and costly repairs by continuously protecting transformers, switchgear, and sensitive electronics in these critical locations.
Medium Voltage Distribution Networks

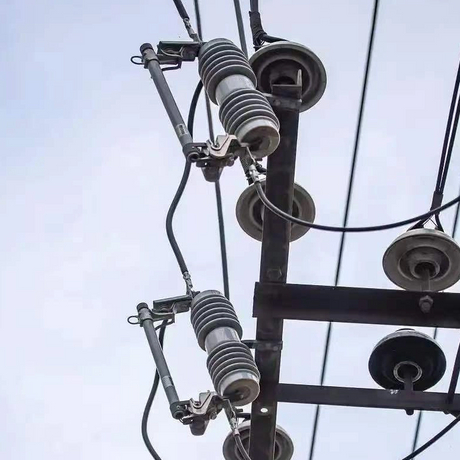

34kV surge arresters are widely used in medium voltage distribution systems, offering targeted protection for transformers and feeders against lightning and switching surges. Their gapless design ensures reduced maintenance and long-term reliability in these frequently accessed network points.
Conclusion
Gapless zinc oxide surge arresters represent a significant breakthrough in overvoltage protection technology. By removing spark gaps, these arresters deliver superior surge suppression, faster response times, enhanced safety, and reduced maintenance compared to traditional designs. Their versatility across voltage ranges—from medium voltage 34kV surge arresters to high voltage 132kV surge arresters—makes them indispensable for modern power grids, including renewable energy and smart grid systems.
For engineers, utility operators, and infrastructure planners seeking reliable and efficient surge protection solutions, Hebei Jiuding Electric Co., Ltd. offers a comprehensive range of high-quality gapless MOAs tailored to diverse voltage applications. Their expertise and advanced products ensure your electrical systems remain protected against the growing complexities of today’s power environment.
To explore cutting-edge surge arrester technologies and secure dependable protection for your projects, consider contacting Hebei Jiuding Electric Co., Ltd. for professional consultation and customized solutions. Visit their website or reach out directly to learn more.
