Introduction
In the rubber industry, have you ever wondered how raw rubber transforms into durable products like tires and insulator silicone rubber? The secret lies in vulcanization, a process that enhances rubber's strength and elasticity. Vulcanizing agents play a crucial role in this transformation, acting as catalysts to create cross-links between polymer chains. In this post, you'll learn about the significance of vulcanizing agents and explore their applications in insulator silicone rubber.
Types of Vulcanizing Agents
In the rubber industry, vulcanizing agents fall mainly into two categories: inorganic and organic. Each type plays a unique role in transforming raw rubber into a durable, elastic material.
Inorganic Vulcanizing Agents
Inorganic agents are often mineral-based substances. Common examples include:
Sulfur: The most widely used vulcanizing agent for natural rubber and many synthetic rubbers. It appears as a yellow solid and can be found in various forms like sulfur powder or sublimated sulfur. Sulfur reacts with rubber molecules to form cross-links, enhancing strength and elasticity. In wire and cable rubber formulas, sulfur typically ranges from 0.2 to 5 parts, adjusted by accelerators.
Metal Oxides: Zinc oxide and magnesium oxide are popular inorganic vulcanizing agents, especially for chloroprene rubber and chlorosulfonated polyethylene. Zinc oxide acts as both a vulcanizing agent and an activator for accelerators. It also improves UV resistance and reinforces rubber. Magnesium oxide prevents premature vulcanization during mixing and enhances tensile strength and hardness.
Selenium and Tellurium: Less common but used in specialized applications, these elements help form cross-links in certain synthetic rubbers.
Organic Vulcanizing Agents
Organic vulcanizing agents are typically chemical compounds containing sulfur or other reactive groups. Examples include:
Sulfur-Containing Accelerators: Compounds like Tetramethylthiuram disulfide (TMTD) serve as both vulcanizing agents and accelerators. TMTD decomposes at around 100°C, releasing free radicals that promote cross-linking. It improves heat resistance and aging properties of rubber. This agent suits natural rubber, styrene-butadiene rubber, and nitrile-butadiene rubber.
Organic Peroxides: Benzoyl peroxide is a common organic peroxide used to initiate vulcanization through free radical formation. It is often employed in specialty rubbers requiring high-temperature resistance.
Resin Vulcanizing Agents: Thermosetting resins like alkyl phenolic resins and epoxy resins enhance heat resistance and mechanical properties. Phenol formaldehyde resins improve heat resistance in unsaturated carbon chain rubber and butyl rubber. Epoxy resins are effective for carboxyl and neoprene rubbers, providing good bending resistance.
Polysulfide Polymers, Urethanes, Maleimide Derivatives: These specialized agents cater to niche applications, offering unique cross-linking behavior and product performance.
Examples and Applications
| Vulcanizing Agent | Typical Use | Key Benefits |
| Sulfur | Natural and synthetic rubbers | Strong cross-linking, elasticity |
| Zinc Oxide | Chloroprene rubber | UV protection, reinforcement |
| Magnesium Oxide | Chloroprene rubber | Prevents premature vulcanization |
| Tetramethylthiuram Disulfide (TMTD) | Wire and cable rubbers | Heat resistance, aging resistance |
| Benzoyl Peroxide | Specialty rubbers | High-temperature curing |
| Alkyl Phenolic Resin | Butyl and unsaturated rubbers | Improved heat resistance |
| Epoxy Resin | Carboxyl and neoprene rubbers | Enhanced bending resistance |
These vulcanizing agents are selected based on the rubber type, desired mechanical properties, and final application. For example, sulfur remains the go-to for natural rubber products, while metal oxides dominate chloroprene formulations. Organic peroxides and resins find use in specialty rubbers needing enhanced thermal or mechanical performance.
Principle of Vulcanization
Vulcanization transforms raw rubber into a tough, elastic material through chemical reactions, temperature, and pressure. This process creates cross-links between polymer chains, improving strength, flexibility, and durability.
Chemical Reactions Involved
At the heart of vulcanization lies the formation of cross-links between rubber molecules. Typically, sulfur atoms form bridges connecting the long polymer chains. These bridges restrict the movement of chains, turning the rubber from a sticky, soft material into a resilient solid.
The main chemical reactions include:
Sulfur Cross-Linking: Sulfur atoms react with double bonds in the rubber polymer chains, creating sulfur bridges (cross-links).
Accelerator Activation: Accelerators speed up the sulfur cross-linking process by forming intermediate compounds that react faster.
Side Reactions: Sometimes, unwanted reactions occur, such as the formation of polysulfide bridges or degradation of rubber, which can affect the final product quality.
For example, in natural rubber, sulfur reacts at the double bonds in polyisoprene chains, forming cross-links that improve elasticity and heat resistance.
Role of Temperature and Pressure
Temperature and pressure control the speed and extent of vulcanization:
Temperature: Vulcanization usually occurs between 140°C and 180°C. At these temperatures, sulfur becomes reactive enough to form cross-links. Too low, and the reaction is slow; too high, and rubber can degrade.
Pressure: Applied pressure ensures the rubber shapes correctly and helps maintain contact between polymer chains and vulcanizing agents, promoting uniform cross-linking.
Maintaining the right temperature and pressure balance is crucial. For instance, during the vulcanization of wire and cable rubber, the process may include constant temperature stages around 230°C and 370°C to complete sulfur cross-linking effectively.
Stages of Vulcanization Process
The vulcanization process typically follows these stages:
Induction Period: The rubber, sulfur, and accelerators mix but no significant cross-linking occurs yet.
Onset of Cross-Linking: Sulfur atoms begin bonding with polymer chains, and the rubber starts to harden.
Cross-Linking Growth: More cross-links form rapidly, increasing rubber’s strength and elasticity.
Vulcanization Completion: The reaction reaches equilibrium; no more cross-links form, and the rubber attains its final properties.
Monitoring the reaction, such as measuring hydrogen sulfide concentration in some industrial processes, helps determine when vulcanization is complete.
Vulcanization in Silicone Rubber
Vulcanization in silicone rubber is a crucial process that changes the material from a liquid to a solid state. This transformation occurs through chemical reactions that create cross-linked structures between silicone polymer chains. These cross-links give silicone rubber its unique physical and chemical properties.
Transition from Liquid to Solid State
Initially, liquid silicone rubber is a viscous fluid. During vulcanization, the reactive groups in the silicone molecules connect, forming a three-dimensional network. This network changes the material's state, making it solid and elastic. The process hardens the silicone, allowing it to maintain shape and resist deformation under stress.
Cross-Linking Structures Formation
Cross-linking forms when the silicone chains chemically bond at specific reactive sites. These bonds restrict the movement of polymer chains, increasing mechanical strength and elasticity. The cross-linking density directly affects properties like tensile strength, elongation, and heat resistance. For example, higher cross-link density results in stronger, more heat-resistant silicone rubber but can reduce flexibility.
The cross-linking usually involves:
Silicon-Hydrogen (Si-H) bonds reacting with vinyl groups in the presence of catalysts.
Formation of stable chemical bridges between chains.
Release of small molecules in some vulcanization types, such as water or alcohol.
Impact on Physical and Chemical Properties
Vulcanization significantly improves silicone rubber's performance:
Mechanical Strength: The material becomes tougher and more resistant to tearing.
Elasticity: Cross-links enable the rubber to stretch and return to its original shape.
Thermal Stability: Silicone rubber withstands higher temperatures without degrading.
Chemical Resistance: The network structure protects against solvents and environmental factors.
Electrical Insulation: Enhanced cross-linking improves dielectric properties, making it ideal for insulator applications.
These changes allow silicone rubber to be used in demanding environments, including automotive, electronics, medical devices, and wire insulation.
Types of Vulcanization Reactions
Vulcanization reactions in the rubber industry mainly fall into two categories: single-component and dual-component vulcanization. Each type uses different chemical processes to turn liquid or raw rubber into solid, elastic materials.
Single-Component Vulcanization
In single-component vulcanization, the rubber contains all necessary ingredients to cure itself once exposed to heat or a catalyst. For example, in liquid silicone rubber, the vulcanizing agent reacts directly with silicon-hydrogen (Si-H) bonds in the polymer chains. This reaction forms cross-links, turning the material from liquid to solid.
The vulcanizing agent acts as a catalyst.
It promotes cross-linking by bonding Si-H groups.
This process requires controlled heat to activate the reaction.
It’s simple since only one component needs to be handled.
Single-component vulcanization is common for products needing fast curing and easy processing.
Dual-Component Vulcanization
Dual-component vulcanization involves mixing two separate parts before curing. Each part contains different chemicals that react when combined.
One part usually contains a base polymer, like vinyl silicone oil.
The other part contains a cross-linking agent, such as hydrogen-containing silicone oil.
A catalyst triggers the reaction between these two components.
The most common reaction is hydrosilylation, where Si-H bonds react with vinyl groups.
This method offers precise control over curing time and properties.
Dual-component systems are popular in room temperature vulcanizing (RTV) silicone rubbers and allow for more complex formulations.
Addition-Cure vs. Condensation-Cure Mechanisms
Two main chemical mechanisms drive vulcanization in silicone rubber:
Choosing between addition and condensation cure depends on the application, desired properties, and processing conditions.
Role of Vulcanizing Agents in Silicone Rubber
Vulcanizing agents play a vital role in the silicone rubber vulcanization process. They act as catalysts, speeding up the cross-linking reactions between polymer chains. This cross-linking transforms the silicone from a soft, liquid or gel-like state into a solid, elastic material with enhanced properties.
Catalysis of Cross-Linking Reactions
In silicone rubber, vulcanizing agents accelerate the chemical reactions that form bonds between polymer chains. For example, in addition-cure silicone rubber, platinum-based catalysts promote hydrosilylation—the reaction between silicon-hydrogen (Si-H) groups and vinyl groups. This reaction forms strong, stable cross-links without producing by-products, resulting in cleaner curing.
In condensation-cure silicone rubber, catalysts speed up the reaction between hydroxyl groups and hydrolyzable groups, releasing small molecules like water or alcohol. These catalysts must be carefully chosen to balance curing speed, final properties, and processing conditions.
Influence on Final Product Properties
The choice and amount of vulcanizing agents directly affect silicone rubber’s mechanical and chemical properties:
Tensile Strength: Proper cross-linking increases resistance to tearing and stretching.
Elasticity: Cross-links enable silicone to stretch and recover its shape.
Thermal Stability: Vulcanizing agents help silicone resist high temperatures without degradation.
Chemical Resistance: Well-cured silicone withstands solvents and environmental damage.
Electrical Insulation: Cross-link density improves dielectric strength, ideal for insulator applications.
Adjusting vulcanizing agent type and concentration allows manufacturers to tailor silicone rubber for specific uses, from medical devices to automotive parts.
Common Vulcanizing Agents Used
Platinum Catalysts: Widely used in addition-cure silicones for fast, clean vulcanization.

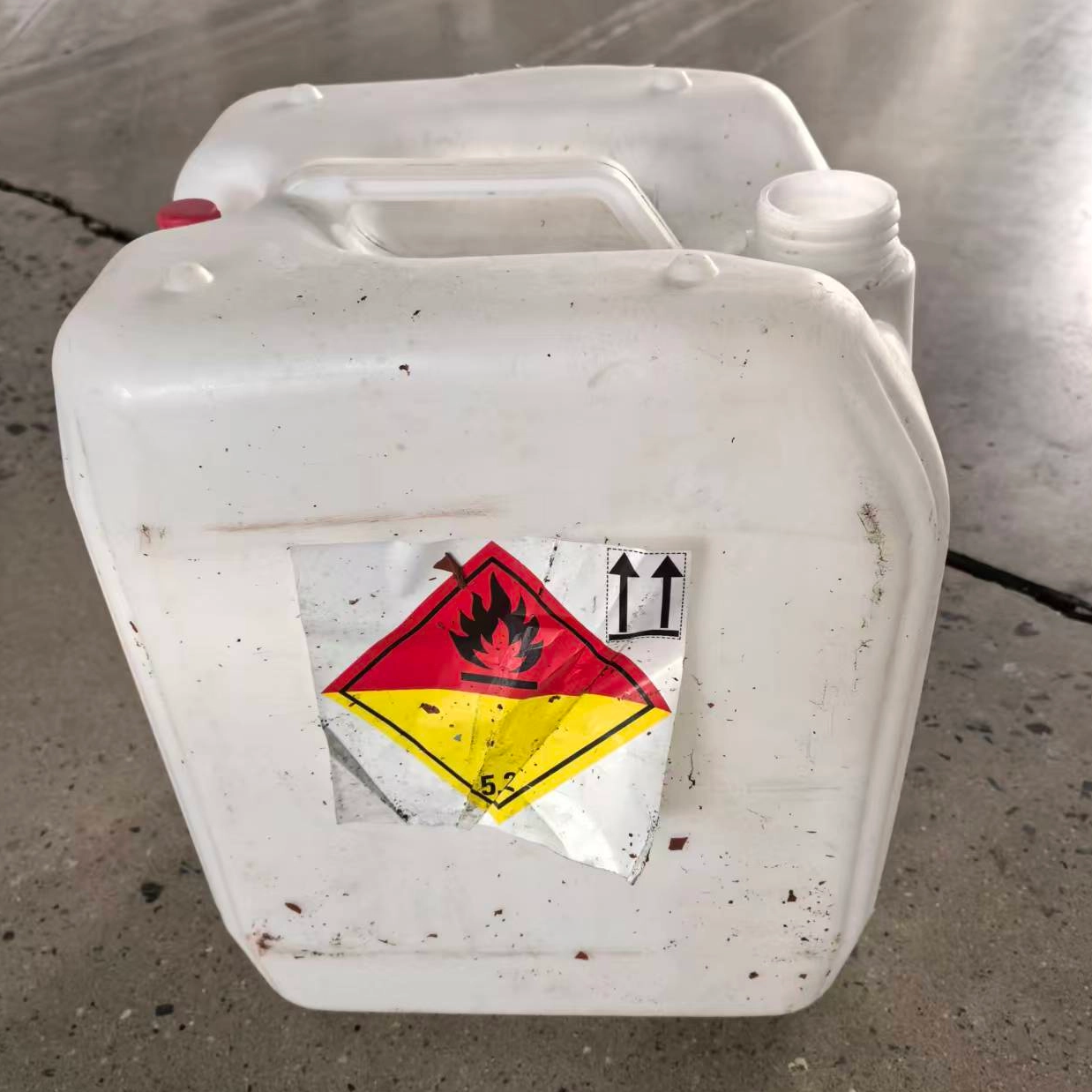

Peroxides: Organic peroxides initiate cross-linking via free radicals, suitable for heat-resistant rubbers.
Imines and Metal Complexes: Employed in specialized silicone formulations to control curing behavior.
Tin Catalysts: Common in condensation-cure silicones, accelerating cross-linking but producing by-products.
Each agent suits different silicone types and applications. For example, platinum catalysts excel in high-purity medical silicones, while tin catalysts are common in RTV (room temperature vulcanizing) products.
Applications and Benefits
Vulcanization greatly improves rubber’s mechanical and thermal properties, making it suitable for many industries. The process enhances tensile strength, heat resistance, and elasticity, turning raw rubber into a durable material.
Enhanced Tensile Strength and Heat Resistance
Cross-linking during vulcanization creates strong chemical bonds between polymer chains. This network resists tearing and stretching, significantly boosting tensile strength. For example, vulcanized silicone rubber can endure much higher stress than its uncured form.
Heat resistance also improves. Vulcanized rubbers withstand elevated temperatures without softening or breaking down. This makes them ideal for automotive parts, electrical insulation, and seals in harsh environments.
Improved Mechanical Properties
Beyond strength and heat endurance, vulcanization enhances other mechanical traits:
Elasticity: Cross-linked chains snap back after stretching, giving rubber its bounce.
Tear Resistance: Vulcanized rubber resists cracks and cuts, extending product life.
Hardness: Controlled vulcanization adjusts hardness for specific applications, from soft seals to firm gaskets.
Durability: Resistance to aging, weather, and chemicals improves, reducing maintenance needs.

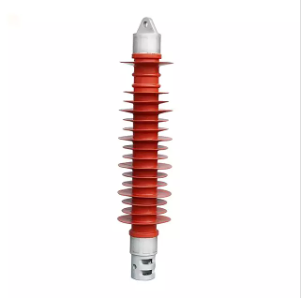

For instance, silicone rubber insulators benefit from vulcanization by gaining flexibility and toughness, essential for electrical safety and longevity.
Uses in Various Industries
Vulcanized rubber finds use across many fields:
Automotive: Tires, hoses, gaskets, and belts rely on vulcanized rubber for performance and safety.
Electrical: Insulation materials and wire coatings use vulcanized silicone rubber to resist heat and electrical stress.
Medical: Flexible, biocompatible silicone rubber parts like seals and tubing depend on vulcanization for durability.
Construction: Seals, membranes, and vibration dampers benefit from vulcanized rubber’s weather resistance.
Consumer Goods: Footwear soles, sporting goods, and household items use vulcanized rubber for comfort and wear resistance.
The versatility of vulcanized rubber allows manufacturers to tailor products to demanding environments and specific requirements.
Conclusion
Vulcanization transforms raw rubber into durable materials through cross-linking reactions, enhancing strength and elasticity. Future trends in the rubber industry focus on advanced vulcanizing agents for improved performance. Insulator silicone rubber benefits from vulcanization, gaining flexibility and toughness essential for electrical safety. JD-Electric offers innovative products with unique benefits, ensuring high value and quality in demanding applications. Their services cater to diverse industry needs, providing reliable solutions for enhanced product longevity and performance.
FAQ
Q: What is a vulcanizing agent in the rubber industry?
A: A vulcanizing agent, such as sulfur or metal oxides, initiates cross-linking in rubber, transforming it into a durable, elastic material. In silicone rubber, these agents enhance properties like tensile strength and thermal stability.
Q: How do vulcanizing agents improve silicone rubber?
A: Vulcanizing agents in silicone rubber act as catalysts, promoting cross-linking between polymer chains. This process enhances mechanical strength, elasticity, and electrical insulation, making it ideal for insulator applications.
Q: Why is sulfur a popular vulcanizing agent?
A: Sulfur is widely used due to its effectiveness in creating strong cross-links in natural and synthetic rubbers, enhancing elasticity and durability. It's especially common in wire and cable rubber formulas.
Q: What are the benefits of using zinc oxide as a vulcanizing agent?
A: Zinc oxide acts as both a vulcanizing agent and an activator for accelerators, improving UV resistance and reinforcing rubber, particularly in chloroprene rubber applications.
