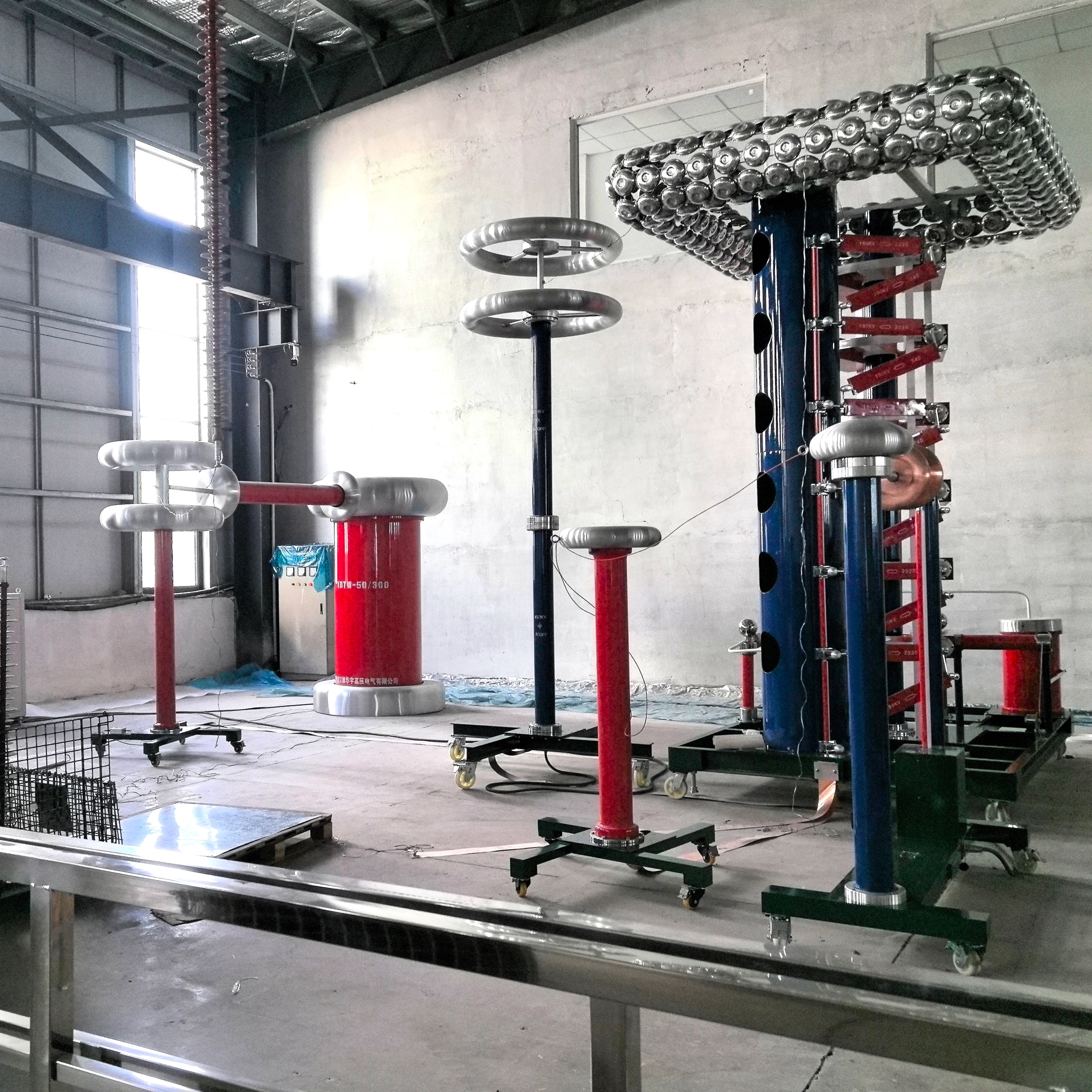

In high-voltage electrical systems, maintaining the integrity of electrical insulation is critical to ensure the safe and efficient operation of the grid. One of the most significant factors affecting the performance of insulators is surface discharge. This phenomenon can lead to insulation failure, causing system malfunctions or even catastrophic failures. Understanding surface discharge and how it affects the performance of composite insulators is essential for preventing these issues and enhancing the reliability of electrical systems. In this article, we will explore the principle behind surface discharge, its effects on electrical insulation, and how it can be mitigated.
What is Surface Discharge?
Surface discharge refers to the flow of electrical current along the surface of an insulating material, rather than through its interior. This occurs when an electrical potential difference is applied to the surface of the material, and the dielectric breakdown of the surface is initiated by contaminants, humidity, or other environmental factors. Instead of traveling through the insulator, the current moves along the surface, potentially causing damage or degradation to the material.
Surface discharge typically happens when the surface of an insulator is not adequately protected from environmental influences, such as pollution, dirt, moisture, or extreme weather conditions. These factors lower the electrical resistance of the surface, allowing the current to flow along the insulator’s surface. In high-voltage systems, this can result in severe consequences, including the breakdown of the insulator, resulting in system outages, equipment damage, or even safety hazards.
The Phenomenon of Surface Discharge
Surface discharge manifests itself through several observable behaviors in high-voltage systems. Typically, the process begins when the applied voltage exceeds the insulation strength of the surface layer of the material. As the electrical stress increases, the contaminants on the surface or the moisture in the air can cause ionization of the surface layer, leading to the discharge path.
The typical behavior of surface discharge includes:
Surface tracking: This is the most common form of surface discharge. It occurs when electrical current follows the surface of the insulator, creating visible tracks along the surface. Over time, these tracks can damage the insulator and degrade its ability to provide adequate insulation.
Partial discharges: These occur when the electrical stress on the insulator surface is high enough to cause localized ionization. Partial discharges can weaken the material over time and eventually lead to insulator failure.
Corona discharges: In some cases, surface discharge can create a corona effect, where ionized air around the insulator creates a visible glow or a hissing sound. While not immediately harmful, corona discharges indicate that the insulation is under stress and can lead to further degradation.
Effects of Surface Discharge on Insulator Materials
Surface discharge can significantly affect the material properties of the insulator, causing long-term damage. The most common effects include:
Degradation: The continuous flow of electrical current along the surface can lead to the gradual breakdown of the insulating material, reducing its effectiveness. Over time, this degradation weakens the insulation, causing it to lose its ability to resist electrical stress.
Corrosion: Surface discharge often occurs in areas exposed to harsh environmental conditions. The discharge can accelerate corrosion, especially in areas where the insulator is made of metal or has metal components. This corrosion further deteriorates the insulator's structural integrity.
Reduced Lifespan: The ongoing damage caused by surface discharge reduces the overall lifespan of the insulator. As the material becomes weaker, the insulator's ability to handle high-voltage stress diminishes, increasing the risk of insulation failure.
How to Prevent Surface Discharge in Insulators
Preventing surface discharge in high-voltage insulators requires a combination of material selection, design improvements, and protective coatings. Several approaches can be used to mitigate the occurrence of surface discharge and enhance the performance and longevity of the insulators.
1. Material Selection
One of the most effective ways to prevent surface discharge is by choosing materials that are less susceptible to degradation from environmental factors. Silicone rubber, for example, is widely used in modern composite insulators due to its excellent hydrophobic properties. Silicone rubber repels water and prevents the formation of moisture films on the surface, making it harder for electrical current to flow along the surface. As a result, silicone rubber significantly reduces the risk of surface discharge and enhances the performance of the insulator.
2. Hydrophobic Coatings
Another method to prevent surface discharge is the application of hydrophobic coatings. These coatings help to keep the surface of the insulator dry and resist the accumulation of contaminants. Hydrophobic coatings prevent moisture from forming a conductive layer on the surface, thereby reducing the likelihood of electrical discharge along the insulator’s surface.
These coatings create a barrier that prevents the infiltration of water and contaminants into the material. Some advanced nano-coatings also enhance the self-cleaning properties of insulators, enabling them to shed dirt and pollution that might otherwise lead to surface discharge. In areas with heavy pollution or high humidity, hydrophobic coatings are especially beneficial in maintaining the insulator’s integrity.
3. Proper Design
The design of high-voltage insulators can also play a role in preventing surface discharge. Contoured surfaces, for instance, allow for better water runoff and prevent the accumulation of moisture on the insulator’s surface. Additionally, using designs that promote better air circulation around the insulator can help prevent moisture buildup, which can reduce the likelihood of surface discharge.
Furthermore, incorporating grading rings in high-voltage systems can help distribute the voltage more evenly across the insulator's surface. This reduces the electrical stress at any one point and can help prevent surface discharge from occurring.
Conclusion
Understanding and preventing surface discharge is crucial for the safety, reliability, and longevity of high-voltage electrical systems. Surface discharge can cause significant damage to composite insulators, leading to degradation, corrosion, and a reduced lifespan. By selecting materials with hydrophobic properties, applying protective coatings, and employing effective design strategies, the risk of surface discharge can be significantly reduced.
For composite insulators to perform at their best and maintain their integrity, it is essential to focus on these preventive measures. With the right combination of material selection and design innovations, the durability and efficiency of high-voltage systems can be greatly enhanced, ensuring reliable operation in demanding environments. Proper maintenance and periodic inspection also play an essential role in identifying any signs of surface discharge early, allowing for timely intervention and ensuring continued system reliability.
