n operational applications, this horizontal post insulator fulfills two primary functions: providing electrical isolation for conductors and resisting diverse mechanical forces. It exhibits excellent torsional and flexural strength, along with superior fatigue resistance, enabling it to endure repetitive mechanical stress from regular operations. The alignment of hardware components requires absolute precision, and the core rod straightness must meet industry-leading benchmarks. Any misalignment could result in operational complications such as arcing, uneven wear, and potential grid disturbances.
Electrically, the insulator incorporates advanced composite materials offering high breakdown voltage and minimal dielectric loss, ensuring stable performance even during transient over-voltage scenarios. Environmentally, it is engineered to withstand the corrosive effects of coastal atmospheres, the erosive impact of various weather conditions, and chemical pollutants prevalent in industrial areas.
Standards
• IEC 61952-2008
• IEC 62231
• ANSI C29.18
Specifications

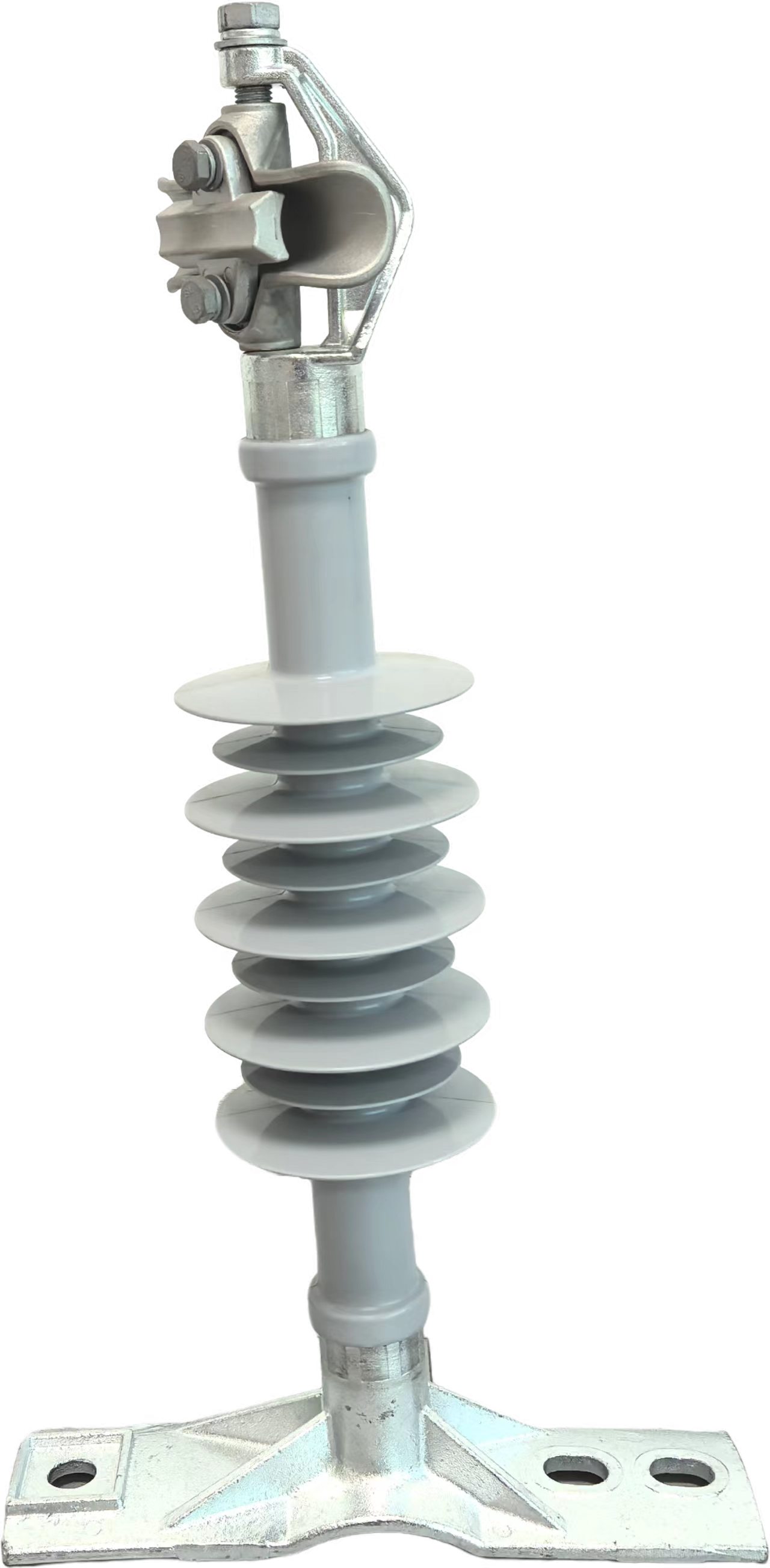

33kV Horizontal Composite Post Insulator with Horizontal Clamp and Curved Base
Application
Primarily deployed within 33kV power transmission and distribution systems globally, this insulator is designed for horizontal mounting on pole and tower structures. The 33kV voltage level represents the most common distribution voltage standard adopted by numerous countries worldwide, including Zimbabwe and Nigeria in Africa, Chile in South America, and many other nations across different continents. Its essential function is to deliver consistent electrical insulation and robust mechanical support for overhead conductors in horizontal configuration. This design plays a vital role in power distribution from substations to end-user connections, serving as a critical component in medium-voltage power networks with widespread international application.
Design Features
Advanced Hardware Configuration The upper hardware incorporates an aluminum alloy horizontal conductor clamp specifically designed for secure conductor attachment. This clamp provides reliable electrical connection while maintaining mechanical stability under varying load conditions. The lower hardware features an integrally formed curved base engineered to conform precisely to the curved surface of utility poles. This innovative design eliminates the need for separate mounting brackets, as the base seamlessly integrates with the insulator body, ensuring optimal fit and enhanced structural integrity.
Horizontal Post Insulator Design As a true horizontal post insulator, this configuration optimizes electrical clearances and mechanical performance for side-mounting applications. The horizontal orientation allows for efficient conductor spacing and facilitates easier installation and maintenance procedures compared to vertical configurations. The design effectively manages conductor loads while maintaining required insulation distances.
Features
Outstanding Reliability Designed to meet the stringent requirements of 33kV systems and the specific mechanical stresses associated with horizontal mounting, it ensures long-term operational stability. This reliability minimizes the need for frequent replacements, thereby reducing maintenance expenses and guaranteeing continuous power supply to consumers across diverse geographic regions.
Global Standard Compatibility Through finite-element analysis and advancements in material science, its structure and materials are precisely tailored to suit the 33kV voltage environment, which represents the universally adopted distribution voltage standard in numerous countries including Zimbabwe, Nigeria, Chile, and many others. This global standardization ensures compatibility and interchangeability across international markets.
Enhanced Environmental Resistance Equipped with hydrophobic coatings, corrosion-resistant alloys, and UV-stabilized materials, it performs reliably across diverse environmental conditions. Whether facing extreme cold, tropical heat, high humidity, or industrial pollution, it maintains structural integrity and performance characteristics.
Broad Application Compatibility The design accommodates various installation configurations, pole types, and electrical load conditions, allowing seamless integration into different grid architectures. The curved base design provides versatility for installation on poles with varying diameters and surface curvatures, while the aluminum alloy clamp accommodates different conductor sizes and types.
Optimized Mechanical Performance The horizontal post configuration, combined with the curved base design, is engineered to handle the unique mechanical forces encountered in side-mounting applications. The integrally formed base ensures superior load distribution and reduced stress concentrations compared to bracket-mounted alternatives. This specialized mechanical design ensures long-term structural stability and operational safety in demanding power grid environments worldwide.
