In operational applications, this insulator serves two critical functions: providing electrical isolation for conductors and resisting diverse mechanical loads. It exhibits superior torsional and flexural strength, along with outstanding fatigue resistance, enabling it to withstand repetitive mechanical stress encountered during routine operations. Given its application as a horizontal crossarm insulator, micron-level dimensional accuracy is essential. End fitting alignment requires absolute precision, and the core rod straightness must comply with industry-leading benchmarks. Any misalignment could result in operational complications including arcing, uneven wear patterns, and potential grid disturbances.
Electrically, the insulator incorporates advanced composite materials delivering high breakdown voltage and minimal dielectric loss, ensuring stable performance even during transient over-voltage scenarios. Environmentally, it is constructed to withstand the corrosive effects of coastal atmospheres, erosive impacts from varying weather conditions, and chemical pollutants common in industrial zones.
Standards
• IEC 61952-2008
• IEC 62231
• ANSI C29.18
Specifications

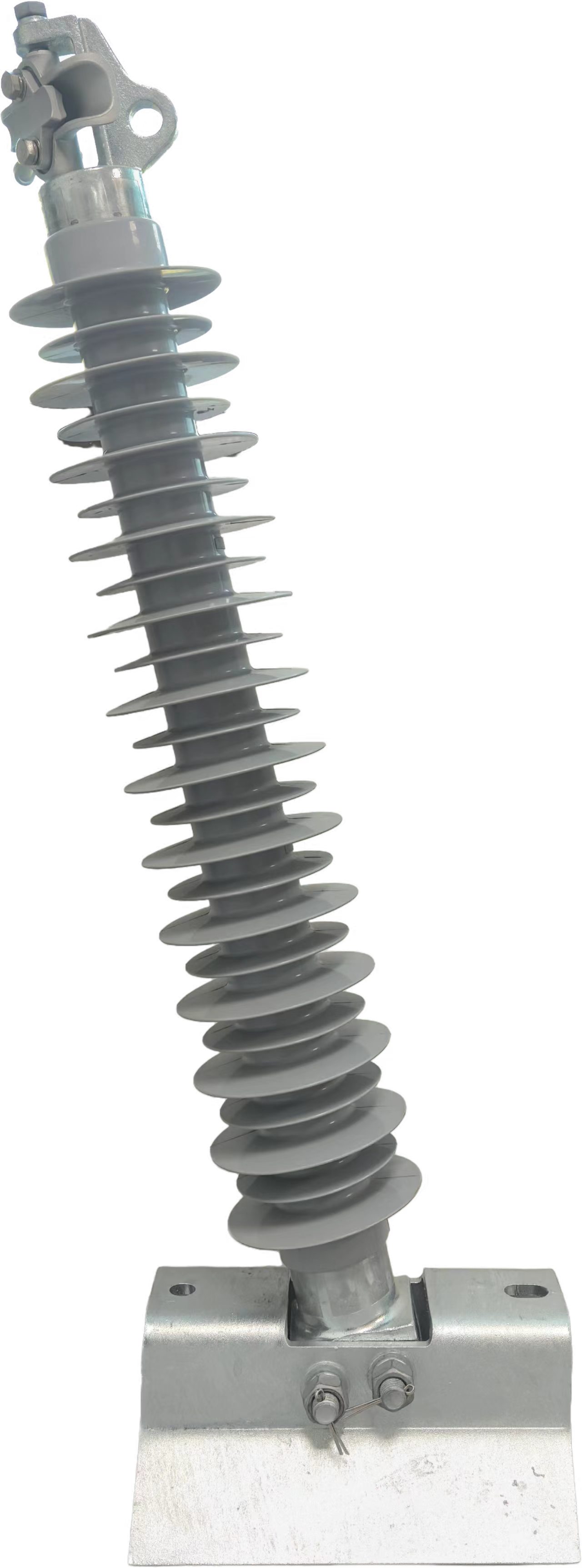

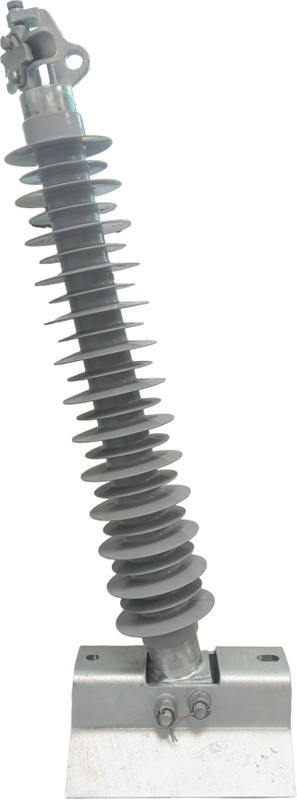

60kV Horizontal Post Insulator (Crossarm Configuration)
Application
Primarily utilized within 60kV power transmission and distribution systems in South American markets and Southeast Asian regions implementing South American technical specifications, this insulator is mounted in horizontal orientation as a crossarm component. Its fundamental purpose is to deliver consistent electrical insulation and robust mechanical support for overhead conductors. This configuration not only supports conductor systems but also contributes significantly to overall grid structural integrity. The product plays a crucial role in power transmission across long-distance distribution networks, particularly in regions requiring high-reliability horizontal mounting solutions.
Features
Exceptional Reliability Engineered to meet the rigorous requirements of 60kV systems and the specific mechanical stresses associated with horizontal crossarm mounting, it ensures sustained operational stability. This reliability reduces the necessity for frequent replacements, thereby decreasing maintenance costs and guaranteeing continuous power transmission.
Optimized Design for Horizontal Applications Through finite-element analysis and innovations in material science, its structural geometry and material composition are precisely configured for the 60kV voltage environment and the mechanical demands of horizontal crossarm installation. This specialization enhances its capacity to manage complex electrical and mechanical stress combinations compared to standard vertical insulators.
Advanced Environmental Resistance Equipped with hydrophobic coatings, corrosion-resistant alloys, and UV-resistant materials, it is engineered to perform reliably across diverse environmental conditions. Whether facing the tropical climate of the Philippines, the tropical savanna of Thailand, or varied South American weather patterns, it maintains structural integrity and performance characteristics.
Broad Compatibility The design accommodates various mounting configurations, conductor loading conditions, and electrical load scenarios, allowing seamless integration into different grid architectures. Particularly suited for systems requiring horizontal crossarm configurations, it delivers consistent performance across varying operational environments and geographic regions.
Enhanced Mechanical Performance As a horizontal post insulator, it is specifically designed to handle the unique mechanical forces encountered in crossarm applications, including vertical loads from conductor weight, transverse loads from wind pressure, and longitudinal loads from line tension. This specialized mechanical design ensures long-term structural stability and operational safety in demanding power grid environments.
