In operational applications, this horizontal post insulator serves a specific critical function: providing electrical isolation and maintaining required clearances for jumper conductors. It exhibits excellent torsional and flexural strength, along with superior fatigue resistance, enabling it to withstand repetitive mechanical stress from wind-induced conductor movements. End fitting alignment requires absolute precision, and the core rod straightness must comply with industry-leading benchmarks. Any misalignment could result in operational complications including arcing and potential electrical clearances violations.
Electrically, the insulator incorporates advanced composite materials delivering high breakdown voltage and minimal dielectric loss, ensuring stable performance under electrical stress conditions. Environmentally, it is constructed to withstand the corrosive effects of coastal atmospheres, erosive impacts from varying weather conditions, and chemical pollutants common in industrial zones.
Standards
• IEC 61952-2008
• IEC 62231
• ANSI C29.18
Specifications

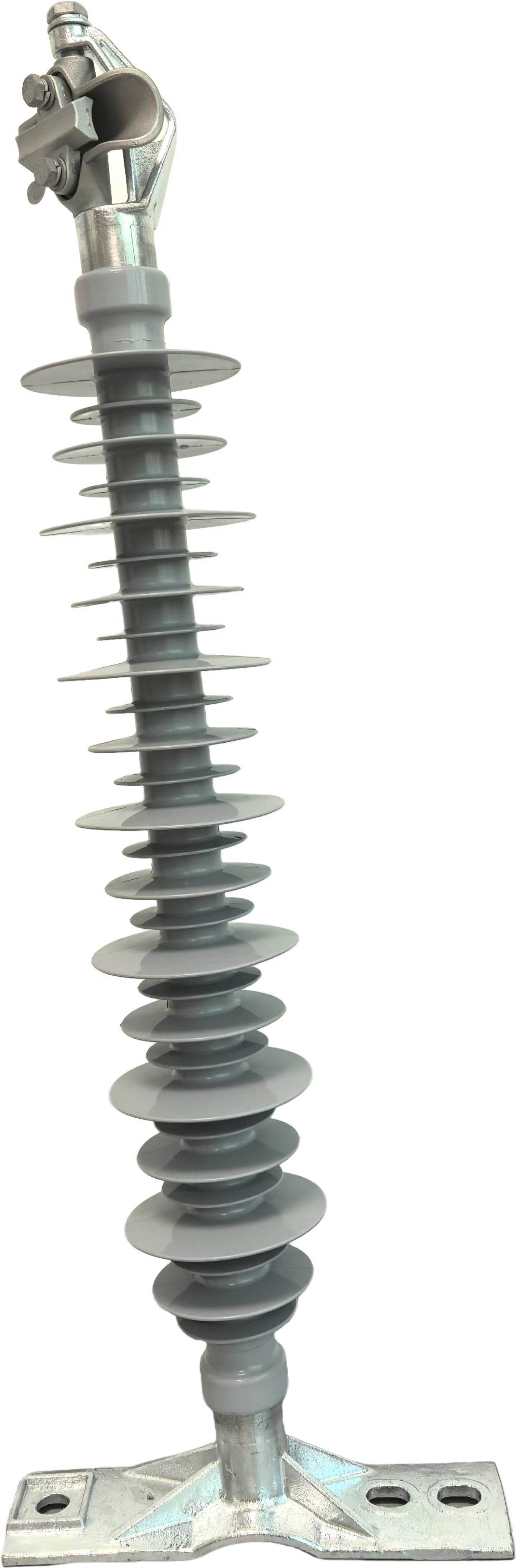

69kV Horizontal Post Insulator for Jumper Conductor Support (Optimized Core Rod Design)
Application
Primarily utilized within 69kV transmission and distribution systems in South American and Southeast Asian markets, this insulator is mounted in horizontal orientation specifically designed for securing jumper conductors. Its fundamental purpose is to maintain appropriate electrical clearance between jumper conductors and tower structures during wind-induced conductor movements. This configuration prevents air dielectric breakdown and discharge incidents that could occur when conductors approach tower structures too closely during wind gusting conditions. The product plays a vital safety role in preventing flashover events while ensuring minimal material usage for economic optimization.
Specialized Design Philosophy
Jumper Conductor Support Function Unlike larger horizontal post insulators designed to carry the substantial vertical loads of main conductors spanning between towers, this insulator is specifically engineered for jumper conductor support applications. Jumper conductors, which provide electrical connections between different phases or equipment at tower locations, require support primarily for maintaining electrical clearances rather than carrying significant conductor weight.
Slender Core Rod Design The core rod diameter is optimized specifically for this application, resulting in a more slender profile compared to conductor-carrying horizontal post insulators. This design choice is intentional: jumper conductors do not support the heavy vertical loads of main conductors that must span between towers over long distances. Main conductor insulators must withstand substantial gravitational forces from conductor weight, requiring robust core rod diameters and increased material usage. In contrast, jumper conductor insulators primarily experience horizontal loads from wind-induced conductor movement rather than vertical gravity loads, allowing for a more economical design that uses less composite material while maintaining adequate strength.
Economic Optimization The slender design represents an intelligent balance between performance and cost-effectiveness. By eliminating unnecessary material that would only be required for heavy vertical load-bearing applications, this insulator provides the required electrical performance and mechanical stability for jumper support at reduced material cost, making it an economically attractive solution for utility operators.
Features
Exceptional Reliability for Jumper Support Engineered to meet the specific requirements of jumper conductor applications in 69kV systems, it ensures long-term operational stability by maintaining required electrical clearances during wind events. This reliability reduces the risk of wind-induced flashover incidents while optimizing material usage for economic efficiency.
Optimized Design for Jumper Applications Through finite-element analysis and innovations in material science, its structural geometry is precisely configured for the mechanical demands of jumper conductor support rather than main conductor suspension. This specialization focuses on managing horizontal wind loads and maintaining clearances rather than supporting heavy vertical conductor weights, resulting in a more efficient use of materials compared to conductor-carrying insulators.
Advanced Environmental Resistance Equipped with hydrophobic coatings, corrosion-resistant alloys, and UV-resistant materials, it is engineered to perform reliably across diverse environmental conditions. Whether facing the tropical climate of Southeast Asia, varied South American weather patterns, or coastal regions with salt-laden atmospheres, it maintains structural integrity and performance characteristics.
Broad Compatibility The design accommodates various jumper conductor configurations, mounting arrangements, and electrical load scenarios, allowing seamless integration into different grid architectures. Particularly suited for 69kV systems requiring jumper conductor support, it delivers consistent performance across varying operational environments and geographic regions.
Wind Movement Management The insulator's mechanical design specifically addresses conductor movement during wind events, ensuring that jumper conductors maintain safe distance from tower structures. The flexible yet stable construction allows controlled conductor movement while preventing close approaches that could lead to air dielectric breakdown and discharge incidents.
Cost-Effective Performance The slender core rod design represents an optimal balance between required mechanical performance and material efficiency. By eliminating the excess material needed only for heavy vertical load-bearing applications, this insulator provides the necessary electrical insulation and mechanical support for jumper conductors at a more economical price point compared to larger conductor-carrying insulators, making it a smart choice for utility operators focused on cost optimization without compromising safety or reliability.
