In operational applications, this horizontal line post insulator serves two critical functions: providing electrical isolation for high-voltage conductors and resisting diverse mechanical loads. It exhibits superior torsional and flexural strength, along with outstanding fatigue resistance, enabling it to withstand repetitive mechanical stress encountered during routine operations. End fitting alignment requires absolute precision, and the core rod straightness must comply with industry-leading benchmarks. Any misalignment could result in operational complications including arcing, uneven wear patterns, and potential grid disturbances.
Electrically, the insulator incorporates advanced composite materials delivering high breakdown voltage and minimal dielectric loss, ensuring stable performance even during transient over-voltage scenarios typical of 138kV transmission networks. Environmentally, it is constructed to withstand the corrosive effects of coastal atmospheres, erosive impacts from varying weather conditions, and chemical pollutants common in industrial zones.
Standards
• IEC 61952-2008
• IEC 62231
• ANSI C29.18
• IEEE 4
Specifications

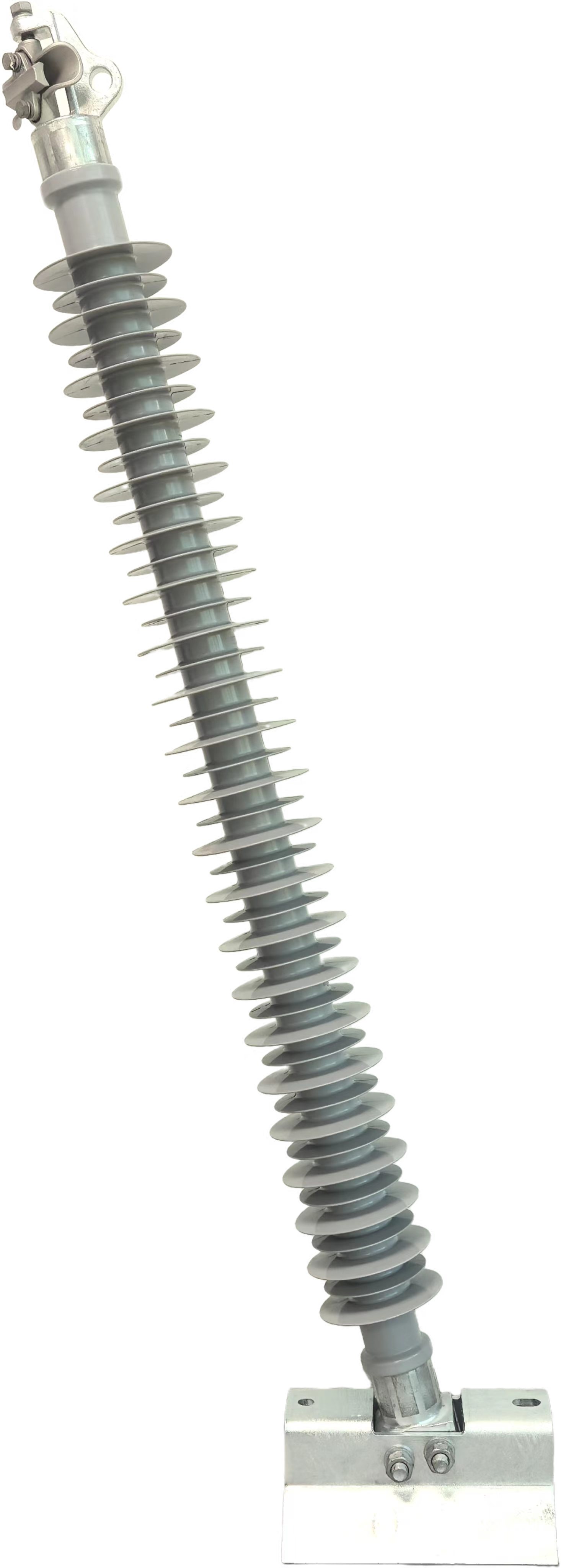

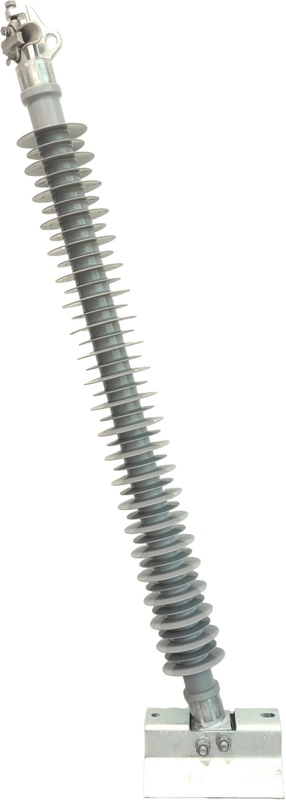

138kV Horizontal Line Post Insulator (ANSI Standard Configuration)
Application
Primarily utilized within 138kV high-voltage transmission systems in South American markets and Southeast Asian regions implementing ANSI technical specifications, this insulator is mounted in horizontal orientation as a line post configuration. Its fundamental purpose is to deliver consistent electrical insulation and robust mechanical support for overhead transmission conductors. This configuration not only supports high-capacity conductor systems but also contributes significantly to overall grid structural integrity at the 138kV voltage level. The product plays a crucial role in bulk power transmission across long-distance distribution networks, particularly in regions requiring high-reliability horizontal mounting solutions that conform to ANSI standards.
Why 138kV for ANSI Standard Markets
The 138kV voltage level represents a critical transmission voltage in ANSI standard systems, serving as a primary tier between distribution networks and ultra-high-voltage transmission systems. This voltage class is extensively utilized throughout South American power grids and Southeast Asian markets following American technical specifications. The horizontal line post configuration at this voltage level offers optimal balance between electrical clearances, mechanical strength, and installation efficiency, making it the preferred choice for transmission infrastructure in these regions.
Features
Exceptional Reliability Engineered to meet the rigorous requirements of 138kV transmission systems and the specific mechanical stresses associated with horizontal line post mounting, it ensures sustained operational stability. This reliability reduces the necessity for frequent replacements, thereby decreasing maintenance costs and guaranteeing continuous bulk power transmission to distribution networks.
Optimized Design for 138kV ANSI Applications Through finite-element analysis and innovations in material science, its structural geometry and material composition are precisely configured for the 138kV voltage environment and the mechanical demands of horizontal line post installation in ANSI-standard systems. This specialization enhances its capacity to manage complex electrical and mechanical stress combinations including high electrical loads, conductor weight, and wind forces compared to standard vertical configurations.
Advanced Environmental Resistance Equipped with hydrophobic coatings, corrosion-resistant alloys, and UV-resistant materials, it is engineered to perform reliably across diverse environmental conditions. Whether facing the tropical climate of the Philippines, varied South American weather patterns, or coastal regions with salt-laden atmospheres, it maintains structural integrity and performance characteristics.
Broad Compatibility The design accommodates various mounting configurations, conductor loading conditions, and electrical load scenarios, allowing seamless integration into different grid architectures adhering to ANSI specifications. Particularly suited for systems requiring horizontal line post configurations at 138kV voltage levels, it delivers consistent performance across varying operational environments and geographic regions.
Enhanced High-Voltage Performance As a 138kV horizontal line post insulator, it is specifically designed to handle the unique electrical and mechanical forces encountered in high-voltage transmission applications. This includes managing corona discharge effects, maintaining adequate creepage distances for contamination performance, and withstanding the increased mechanical loads typical of high-capacity transmission conductors. The extended shed design ensures proper electrical performance under all environmental conditions while the robust mechanical construction provides reliable support for heavy conductor bundles.
