In high-voltage systems, electrical insulation is crucial for preventing damage to equipment and ensuring the safe transmission of power. One phenomenon that can significantly affect the performance of electrical insulators is streamer discharge. Understanding the streamer discharge theory is essential for improving the resilience and durability of insulators in high-voltage systems. This article explores the concept of streamer discharge, how it differs from other forms of electrical discharge, and the impact it has on insulator materials.
What is Streamer Discharge?
Streamer discharge refers to a type of electrical discharge that occurs in gases or insulating materials when high-voltage conditions create ionization along a path. Unlike corona discharge, which occurs at lower voltages and leads to ionization near the surface of the insulator, streamer discharge involves the rapid formation of ionized filaments, known as streamers, that propagate through the material. These streamers form a channel of ionized gas, which allows current to flow through the insulating material, leading to a breakdown of the electrical insulation.
The primary difference between streamer discharge and other types of discharge, such as arc discharge and corona discharge, lies in the process and the conditions under which they occur:
Corona discharge occurs at lower voltages and involves the ionization of air around the conductor or insulator, but does not cause a full breakdown of the insulation.
Arc discharge occurs at higher voltages and involves a sustained flow of electrical current across a gap, creating intense heat and often resulting in damage to materials.
Streamer discharge, on the other hand, involves the creation of ionized filaments that can grow rapidly, leading to the breakdown of insulation in high-voltage systems. The streamers act as channels for current, which can severely damage the material if not controlled.
The Process of Streamer Discharge and its Formation
Streamer discharge occurs when a strong electric field is applied to a gas or insulator, causing ionization of the surrounding air or material. This ionization process forms a plasma, which is a highly conductive state of matter composed of ions and free electrons. As the electric field intensifies, the plasma becomes more unstable, and the ionized particles begin to form streamers.
The formation of streamers follows a series of steps:
Initial Ionization: The high electric field accelerates electrons, which collide with gas molecules, ionizing them and creating a large number of free electrons and ions.
Streamer Propagation: As the ionization increases, the electrons move faster and further ionize more gas molecules, forming thin, highly conductive filaments, or streamers. These streamers can propagate quickly through the gas or insulating material, creating a pathway for electrical current.
Breakdown: If the number of streamers increases sufficiently, they form a continuous ionized channel, resulting in a complete breakdown of the material's insulation. The discharge path becomes conductive, allowing electrical current to flow freely, bypassing the insulating material.
Streamers can propagate in various directions, often creating multiple discharge paths. As they move, they can expand into more significant areas of the material, intensifying the ionization and ultimately leading to the complete breakdown of the insulation.
How Streamer Discharge Affects Electrical Insulators
Streamer discharge can have severe consequences for the performance of electrical insulators. Insulators are designed to resist electrical flow and maintain the separation of conductors, but streamer discharge can compromise this function.
1. Erosion of Insulator Surface
As the streamers propagate along the surface of the insulator, they generate significant heat, which can lead to the erosion of the insulating material. The continuous ionization weakens the surface and removes protective layers, making the insulator more vulnerable to further discharge events. Over time, this can lead to the formation of tracking paths on the insulator, where discharge channels have burned into the material. These tracking paths become highly conductive and can facilitate further discharges, weakening the insulator's ability to perform its function.
2. Cracking and Material Degradation
Streamer discharge also causes thermal stress within the insulator material. The intense heat generated by the discharge can cause cracking or deformation of the insulator. This physical damage can accelerate the degradation process, making the insulator more susceptible to future breakdowns. Additionally, the ionization process associated with streamers can alter the chemical structure of the material, reducing its effectiveness as an insulator over time.
3. Loss of Dielectric Strength
The most significant consequence of streamer discharge is the loss of dielectric strength of the insulating material. As streamers continue to propagate, they weaken the insulator, lowering its ability to resist electrical stress. This can lead to flashovers, where electrical current bypasses the insulator and flows through the degraded material, causing short circuits or equipment failure.
Preventing Streamer Discharge in High-Voltage Systems
Preventing streamer discharge requires a combination of advanced materials, innovative designs, and protective coatings. Various strategies are employed to reduce the risk of streamer discharge and improve the performance of insulators in high-voltage systems.
1. Use of Advanced Composite Materials

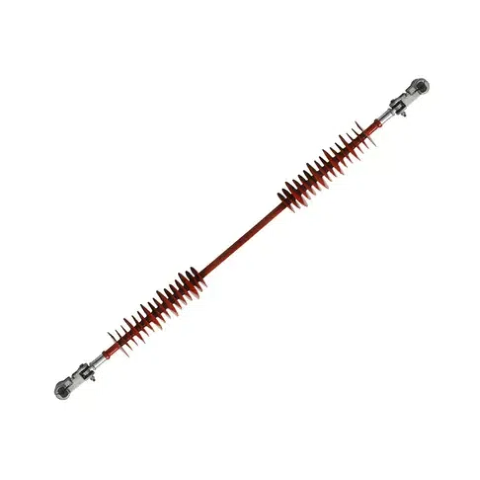

One of the most effective methods of preventing streamer discharge is the use of advanced composite materials in insulators. Silicone rubber and epoxy-based materials are often used in modern composite insulators due to their excellent dielectric properties and resistance to ionization. These materials help to minimize the formation of streamers by preventing moisture accumulation and ensuring that the surface remains non-conductive. Composite materials with hydrophobic properties also repel water, preventing the formation of conductive water films that could facilitate streamer discharge.
2. Improved Insulator Design
The design of insulators can also play a critical role in minimizing the risk of streamer discharge. Contoured or ribbed designs allow for better water runoff and reduce the buildup of contaminants on the surface. By preventing the accumulation of dirt, moisture, and other impurities, these designs help to maintain the insulating material's effectiveness and reduce the likelihood of streamer formation.
In addition, grading rings can be incorporated into high-voltage insulators to help distribute the electrical field evenly and prevent localized areas of intense ionization that might lead to streamer discharge.
3. Protective Coatings
The application of protective coatings can further enhance the resistance of insulators to streamer discharge. Anti-tracking coatings and hydrophobic surface treatments provide an additional layer of protection, preventing the formation of ionized paths and enhancing the insulator's ability to withstand high-voltage stress. These coatings also help to protect the insulator from environmental factors such as pollution, humidity, and temperature extremes.
Conclusion
Understanding the streamer discharge theory is crucial for improving the design and performance of electrical insulators in high-voltage systems. Streamer discharge can lead to significant damage to insulators, causing erosion, cracking, and a loss of dielectric strength. By incorporating advanced composite materials, innovative designs, and protective coatings, the risk of streamer discharge can be minimized, ensuring the reliability and longevity of electrical systems.
As technology advances, continued research and innovation in materials and design strategies will further improve the resilience of insulators against streamer discharge, leading to more reliable and efficient high-voltage systems. For those seeking high-quality insulators that are designed to withstand streamer discharge and other electrical stresses, contact us today for tailored solutions.
