The safe and reliable operation of electrified railway systems depends heavily on proper installation and maintenance of cantilever insulators. These critical components support overhead contact wires and provide electrical isolation, ensuring that trains operate smoothly without risk of electrical faults or system interruptions. With the evolution from porcelain and glass insulators to modern composite cantilever insulators, rail networks have gained a more reliable, lightweight, and durable solution capable of withstanding dynamic mechanical stresses and harsh environmental conditions.

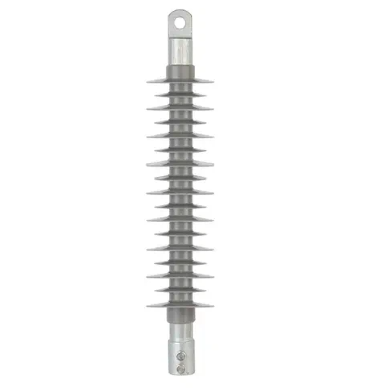

Composite insulators are designed with a fiberglass-reinforced epoxy core for mechanical strength, surrounded by a hydrophobic polymer housing that resists pollution and moisture. The end fittings are typically corrosion-resistant metal, allowing secure attachment to catenary arms or support brackets. While these insulators offer significant advantages in durability and performance, achieving their full potential requires proper installation. This guide provides a step-by-step overview, discussing preparation, handling, mounting, testing, and commissioning, while highlighting operational and safety considerations.
Understanding Composite Railway Cantilever Insulators
Structure and Function
A cantilever insulator is designed to support overhead catenary wires while providing electrical isolation from supporting structures. In modern systems, composite insulators combine mechanical and electrical performance by utilizing a fiberglass core to withstand tensile and compressive forces and a polymer housing to prevent leakage currents and flashovers. The hydrophobic nature of the polymer ensures that environmental moisture does not compromise insulation, while the lightweight design facilitates handling during installation.
Composite cantilever insulators are used across multiple applications in electrified rail systems. They are essential in urban metro networks where space constraints and pollution are significant challenges, in high-speed rail systems where dynamic mechanical stress is substantial, and in industrial rail lines exposed to harsh chemical or environmental conditions. Their lightweight and flexible design also simplifies maintenance compared to traditional porcelain insulators.
Advantages Over Traditional Insulators
Compared to ceramic or glass, composite insulators are lighter, reducing structural loads on support poles and brackets. Their flexible design allows them to absorb vibrations and mechanical shocks without cracking, and their pollution-resistant surfaces require less maintenance, reducing operational downtime. These features make composite insulators particularly suitable for densely populated urban environments and industrial areas with high environmental contamination.
Tools and Safety Equipment Required
Essential Tools
Before beginning installation, it is important to assemble the necessary tools. A torque wrench is required to ensure metal end fittings are secured to the manufacturer’s specifications. Lifting equipment or cranes may be needed to position larger insulators safely. Insulated hand tools are recommended to prevent electrical hazards, while measuring tapes and alignment devices help ensure accurate installation. Fasteners compatible with the insulator’s end fittings are also necessary for secure attachment.
Personal Protective Equipment (PPE) and Safety Precautions
Safety is paramount during installation. Personnel should wear insulated gloves, hard hats, safety harnesses when working at height, protective eyewear, and high-visibility clothing. Before installation begins, ensure the power to the relevant catenary section is shut down. Verify that all lifting equipment can safely handle the weight of the insulators. Follow manufacturer torque specifications and alignment instructions carefully to prevent mechanical or electrical failure during operation.
Step 1: Pre-Installation Inspection
A thorough pre-installation inspection is crucial to identify any manufacturing defects or transport damage. Each insulator should be examined for surface cracks, chips, or other defects. The polymer housing and fiberglass core must be intact, and metal end fittings should be free from corrosion or deformation. It is important to verify that the insulator matches the voltage rating, mechanical load requirements, and length specified for the installation site. In addition, environmental assessment ensures that the mounting area is clean, free of debris, and allows sufficient clearance from adjacent structures or lines.
Step 2: Preparing the Support Structure
Mounting brackets or cantilever arms must be inspected for structural integrity before attaching insulators. Brackets should be aligned precisely, and mounting holes should be clear of debris or corrosion. Proper alignment is essential to maintain correct wire height and tension once the insulator is installed. Ensuring that the support structure is level and correctly oriented minimizes mechanical stress and ensures long-term reliability of the overhead catenary system.
Step 3: Positioning the Insulator
Due to their lightweight construction, composite insulators can often be handled manually for smaller units, while larger insulators require lifting equipment. It is critical to attach lifting points correctly to prevent mechanical shock or damage. The insulator is then positioned onto the mounting bracket or cantilever arm. Proper orientation according to system design ensures that the end fittings align correctly with catenary wires and supporting structures.
Step 4: Securing End Fittings
After positioning, the metal end fittings are fastened to the support bracket or cantilever arm. Using a torque wrench ensures that bolts are tightened to manufacturer specifications. Proper seating of end fittings prevents loosening or movement under mechanical load. Once fastened, the alignment of the insulator should be verified, ensuring it is stable and correctly oriented relative to the catenary system.
Step 5: Electrical Clearance Checks
Maintaining proper electrical clearance is vital to prevent arcing or flashovers. Inspect the spacing between the insulator, supporting structure, and adjacent lines to ensure compliance with design voltage requirements. If specified, perform insulation resistance tests using a megohmmeter to verify that the polymer housing provides adequate electrical isolation. Document all measurements as part of quality control procedures.
Step 6: Catenary Wire Attachment
The overhead contact or messenger wire is then attached to the insulator’s end fittings. Wire tension should be applied according to the catenary system’s design specifications. Care must be taken to avoid sharp bends or abrasions that could compromise the wire or insulator. Tension verification ensures that sag and tensile force parameters are met, maintaining both electrical and mechanical performance. All work should be performed with power de-energized to ensure personnel safety.
Step 7: Environmental and Mechanical Testing
Following installation, the insulator may undergo mechanical testing to simulate expected dynamic and static loads. This ensures the fiberglass core can withstand operational stresses without deformation or failure. Environmental simulation, including exposure to moisture, wind, or contaminants, may also be performed to confirm the hydrophobic properties of the polymer housing. All results should be documented for operational and regulatory compliance.
Step 8: Final Inspection and Commissioning
A thorough visual inspection confirms that the insulator is aligned, stable, and free from mechanical or electrical defects. Overhead wires should be properly tensioned, and electrical isolation verified. Once approved, the section can be energized. Initial monitoring ensures no abnormal behavior such as wire sagging or leakage currents. Scheduling regular maintenance and inspection cycles completes the commissioning process, ensuring safe and reliable long-term operation.
Best Practices for Safe and Efficient Installation
Successful installation of composite cantilever insulators requires adherence to manufacturer guidelines, careful handling, and teamwork for lifting and alignment. Insulated tools should always be used near high-voltage areas, and all installation steps should be documented to maintain accountability and compliance. Training personnel on updated procedures ensures both safety and operational efficiency across the rail network.
Advantages of Composite Cantilever Insulators
Composite cantilever insulators provide enhanced operational reliability, maintaining electrical isolation under dynamic loads and environmental stress. They require less frequent maintenance due to hydrophobic and pollution-resistant surfaces, which reduces operational downtime and labor costs. Their lightweight construction simplifies installation and replacement, while mechanical flexibility ensures safety even in high-speed or high-vibration rail systems. Overall, they contribute to a safer, more reliable, and cost-effective electrified rail network.
Case Studies
Urban metro networks in Southeast Asia have adopted composite insulators to replace porcelain units, reducing maintenance frequency and improving electrical performance under polluted urban conditions. European high-speed rail systems leverage their mechanical strength and lightweight design to reduce structural load and maintain stability at high operational speeds. In industrial rail lines in the Middle East, composite insulators withstand harsh environmental conditions, including dust and high temperatures, ensuring continuous operation with minimal downtime.
Conclusion
Composite railway cantilever insulators have revolutionized modern rail electrification by providing superior mechanical strength, hydrophobic insulation, lightweight construction, and resistance to environmental pollutants. Proper installation, following a detailed step-by-step process, ensures that these insulators deliver optimal performance, safety, and long-term reliability. For railway operators and engineers seeking high-quality solutions, Hebei Jiuding Electric Co., Ltd. offers composite insulators designed for modern urban and intercity rail networks, providing durable, reliable, and safe performance for critical electrified infrastructure.
FAQ
Q: Why are composite cantilever insulators preferred over traditional materials?
A: They are lighter, mechanically flexible, pollution-resistant, and require less maintenance while providing high electrical and mechanical performance.
Q: What safety measures are essential during installation?
A: Use PPE, insulated tools, ensure correct torque on fittings, and maintain safe distances from energized lines.
Q: How does proper installation impact rail system performance?
A: Correct installation ensures electrical isolation, prevents flashovers, maintains wire tension, and reduces maintenance needs.
Q: What maintenance practices extend the life of composite insulators?
A: Regular inspections, cleaning based on environmental exposure, and adherence to manufacturer guidelines ensure long-term durability.
