Coastal and heavy-industrial grid environments face severe flashover risks every day due to saline pollution. Salt particles continuously blow inland from the ocean, accumulating relentlessly on exposed power transmission infrastructure. Traditional ceramic and glass insulators suffer from rapid surface wetting in these harsh environmental zones. When coastal fog and ambient moisture combine with this accumulated salt, they form a highly conductive electrolyte layer on the housing surface. This dangerous combination frequently triggers catastrophic leakage currents and unpredictable grid outages.

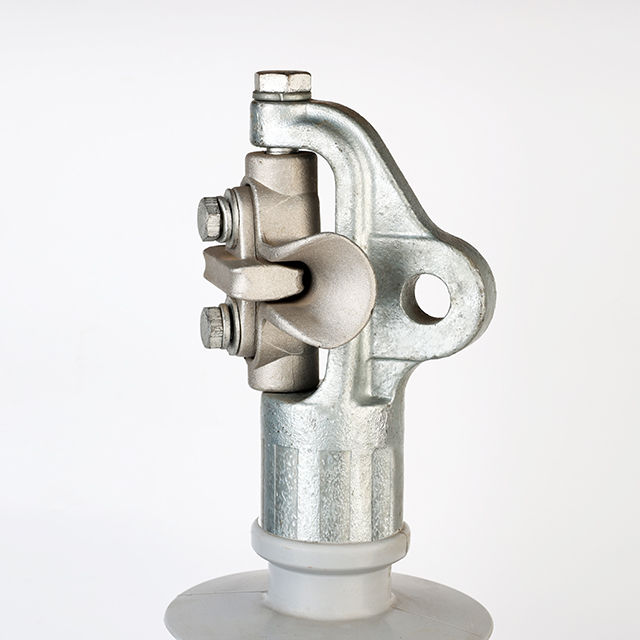

This article evaluates the actual performance mechanics of a Silicone Rubber Insulator under severe salt fog conditions. We will cut through generic marketing claims to examine core testing standards, physical material limitations, and essential procurement criteria. You will discover exactly how these advanced polymers behave during extreme environmental stress. Understanding these dynamics helps engineers specify the correct hardware to protect critical grid assets reliably over the long term.
Key Takeaways
- Silicone rubber mitigates salt fog risks through hydrophobicity transfer, preventing continuous conductive water films from forming on the housing.
- Under continuous heavy salt fog, hydrophobicity can temporarily diminish, making dry-band arcing resistance a critical evaluation metric.
- Profile design matters; specifying the correct creepage distance across varying composite insulator types is necessary for coastal grid reliability.
- Validating performance requires specific adherence to standard salt fog chamber testing (e.g., IEC 62217 / IEEE standard protocols) focusing on leakage current suppression.
The Threat of Saline Pollution on Grid Infrastructure
Salt deposits alone do not cause immediate grid failures during dry weather. The true operational danger emerges when ambient moisture enters the equation. Coastal fogs, light drizzles, and high humidity levels easily dissolve dry maritime aerosols resting on the insulator housing. This specific chemical reaction creates a highly conductive electrolyte layer. Electrical current then finds an easy, low-resistance path across the entire equipment surface.
Unchecked leakage current progresses rapidly across this wet saline layer. As the current flows, it generates intense localized heat along the surface. This thermal energy evaporates small sections of the moisture layer, creating distinct dry bands. High voltage arcs bridge these newly formed dry bands almost instantly. Continuous dry-band arcing fundamentally degrades the surface material and often escalates into complete flashovers. When a flashover event occurs, protective relays trip, and unplanned grid outages follow immediately.
Engineers cannot solve this complex issue merely by extending the unified specific creepage distance. A longer physical path across a naturally hydrophilic surface still wets out eventually. Mitigating this specific environmental stressor requires active material resistance at the molecular level. The insulator surface must actively repel water to break the continuous conductive path. Without this active defense, coastal fogs will consistently overcome passive creepage extensions.
Hydrophobicity and Leakage Current: The Silicone Advantage
Advanced polymer housings provide an active surface defense against harsh maritime climates. The base material utilizes Low Molecular Weight (LMW) siloxanes embedded within the polymer matrix. These fluid-like polymer chains naturally migrate from the bulk material to the outer surface over time. Once on the surface, they continuously encapsulate deposited salt particles and dirt. This vital encapsulation process renders the entire pollution layer highly water-repellent.
Water beading fundamentally prevents continuous film formation. Traditional porcelain allows moisture to sheet across the surface smoothly. In contrast, silicone forces water molecules to bead up into isolated, distinct droplets. Breaking these continuous water paths inherently suppresses the initial leakage current. If the current cannot flow freely between droplets, dry-band arcing struggles to initiate. This physical mechanism protects the underlying housing from thermal degradation.
Critics often point out a documented limitation regarding polymer performance. A composite insulator will lose surface water repellency under continuous corona discharge or heavy saline stress. Extreme storms temporarily strip the methyl groups from the surface, rendering it temporarily hydrophilic. However, the material fundamentally recovers its unique properties. Once the severe environmental stress stops, internal LMW siloxanes resume their outward migration. The polymer regains its full hydrophobic state within a few hours to a few days.
Profile and Form Factor: Evaluating Composite Insulator Types
Aerodynamic design significantly dictates how much salt accumulates on the housing. Shedding profiles determine how effectively an insulator self-cleans during heavy rain events. You must carefully evaluate different form factors before approving them for coastal deployments. Profile optimization prevents salt trapping and maximizes natural washing.

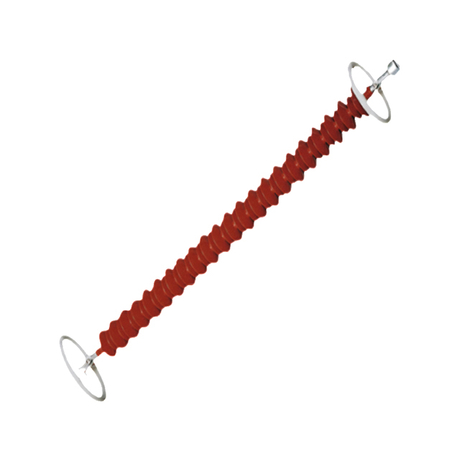

Composite Long Rod Insulator
Engineers consider the composite long rod insulator ideal for high-voltage overhead transmission lines. Manufacturers design them using distinct alternating shed profiles. These varied shed diameters intentionally disrupt vertical water dripping paths. This targeted disruption drastically reduces heavy saline accumulation during dense fogs. Coastal winds naturally flow around these aerodynamic sheds, preventing stagnant air pockets where salt typically settles.

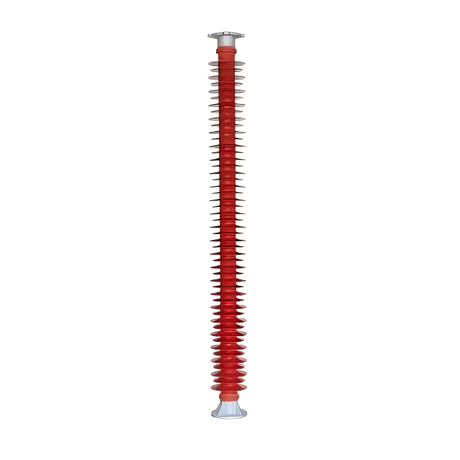

Composite Post Insulator
Electrical substations rely heavily on the composite post insulator due to stringent structural load demands. These specific units require much higher mechanical stiffness to support heavy busbars. They feature a significantly larger fiberglass core diameter to achieve this rigidity. Evaluation must focus heavily on how this thicker core interacts with salt fog distribution. A wider core can accumulate more pollution on the leeward side, making optimized creepage design crucial here.

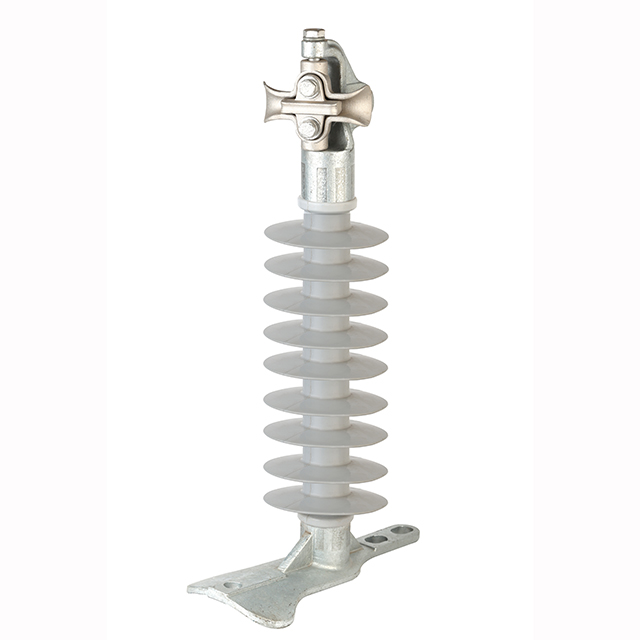

Composite Pin Insulator
Regional distribution networks frequently deploy the composite pin insulator for medium-voltage lines. These units have smaller overall profiles and tighter clearances. High salt fog density can easily bridge the narrow gaps between small sheds. If the alternating diameter design is not optimized specifically for coastal zones, flashover risks increase sharply. You must ensure the chosen shed spacing explicitly prevents water bridging during heavy fog conditions.
Evaluating Salt Fog Test Data: Standards and Metrics
You cannot rely on glossy marketing brochures to guarantee long-term coastal reliability. Validating true performance requires rigorous adherence to standardized testing protocols. Manufacturers simulate decades of severe coastal aging inside specialized salt fog chambers. These controlled testing methodologies align strictly with IEC 62217 and recognized IEEE standards. They focus specifically on evaluating tracking and erosion resistance under accelerated stress.
Leakage Current (LC) development serves as the primary evaluation metric. Buyers should scrutinize laboratory test reports for acceptable milliamp thresholds. Extremely high leakage currents indicate an imminent flashover risk in the field. The polymer material must suppress this electrical current effectively during continuous 1000-hour fog exposure tests. Consistent suppression proves the material can handle prolonged coastal storms.
Tracking and erosion resistance operates as the second critical metric. You must assess the material's innate ability to survive intense dry-band arcing. The polymer housing must endure localized electrical discharges without suffering permanent degradation. Deep carbon tracking or severe housing erosion results in immediate test failure. The core fiberglass must remain entirely protected throughout the testing cycle.
Watch out for clear red flags embedded in vendor data packages. Treat unrealistic claims of absolute "zero leakage" with extreme technical skepticism. Polymers always exhibit minor surface currents during severe wetting events. Refuse product qualification if the vendor fails to provide authentic, long-term salt fog exposure data. Short-term testing simply cannot predict decades of complex environmental aging.
Salt Fog Testing Metrics Summary
| Evaluation Metric | Acceptable Standard | Unacceptable Indication (Failure) |
| Leakage Current (LC) | Stable, low milliamp range | Rapid exponential spikes preceding flashover |
| Housing Erosion | Superficial chalking or minor surface wear | Deep pitting exposing the internal fiberglass core |
| Tracking Resistance | No conductive carbon paths formed | Visible permanent carbon tracks along the creepage |
| Hydrophobicity Recovery | Full droplet beading returns within 72 hours | Surface remains permanently hydrophilic after resting |
Implementation Risks and Long-Term Aging Factors
We must transparently acknowledge the inherent limits of polymer technology in harsh environments. Severe, uninterrupted salt fog chemically and physically accelerates polymer aging. When combined with extreme ultraviolet (UV) radiation, the housing degrades much faster. This synergistic combination of intense UV and maritime salinity attacks the molecular bonds of the rubber matrix.
Risk mitigation requires highly proactive maintenance and inspection strategies. Utilities must conduct routine visual inspections of their coastal assets regularly. Field technicians should utilize specialized UV or corona cameras during these patrols. These optical tools detect early chalking, surface crazing, or localized micro-cracking long before human eyes can spot them. Catching these degradation issues early prevents catastrophic line drops and systemic failures.
Beware of common over-specification traps during the engineering phase. Many planners blindly increase the unified specific creepage distance to combat pollution. They assume a physically longer path automatically improves fog performance. However, increasing creepage without optimizing the physical shed profile creates severe problems. Packing too many tightly spaced sheds together traps more salt and moisture. This overly dense profile actually worsens overall electrical performance in heavy fog.
Procurement Checklist: Specifying for Coastal Zones
Use a highly structured approach when ordering hardware for aggressive saline environments. A strict procurement checklist ensures you receive durable, reliable components tailored for the job. Do not accept generic utility-grade polymers for severe coastal applications.
- Material Formulation Request: Insist on High-Temperature Vulcanized (HTV) silicone for the housing. Verify the inclusion of high-quality ATH (Alumina Trihydrate) fillers. ATH actively releases water vapor under extreme heat, cooling the arc and providing maximum erosion resistance.
- Documentation Required: Demand authentic third-party laboratory certifications. These documents must specifically cover 1000-hour salt fog chamber testing under IEC protocols. Standard wet power frequency tests do not simulate coastal pollution accumulation accurately.
- Design Customization: Ensure the manufacturer can customize alternating shed profiles easily. The final aerodynamic design must accommodate the specific wind patterns of your installation site. It should also closely match your local equivalent salt-deposit density measurements.
Conclusion
A well-formulated silicone polymer remains the most effective insulation solution for brutal salt fog environments. Success depends entirely on strict material evaluation focused on leakage current suppression. Superior erosion resistance ultimately dictates the long-term survival of the polymer housing under extreme coastal stress. Proper shed profile optimization guarantees the hardware can self-clean effectively during heavy rain. Engineers should audit their current coastal flashover rates immediately to identify vulnerable network segments. Procurement teams must request specific 1000-hour salt-fog chamber test data from all prospective manufacturers moving forward.
FAQ
Q: How long does it take for a silicone rubber insulator to recover its hydrophobicity after a severe salt fog event?
A: Typically, it takes 24 to 72 hours. Recovery depends heavily on ambient temperature, specific material formulation, and the severity of surface discharges during the event. Warmer temperatures generally accelerate the chemical migration of low molecular weight siloxanes to the surface.
Q: Do composite insulators perform better than porcelain in salt fog?
A: Yes, they perform significantly better. Porcelain is naturally hydrophilic, allowing continuous conductive water films to form immediately in fog. The hydrophobic nature of a polymer housing actively disrupts this process, preventing the dangerous initial leakage currents that cause flashovers.
Q: Can you wash a composite insulator to remove salt deposits?
A: While possible, washing is rarely necessary and carries inherent operational risks. High-pressure washing can permanently damage the delicate polymer housing. The material is fundamentally designed to encapsulate dirt molecularly and self-clean naturally during standard environmental rain events.
