Composite long rod insulators have become a cornerstone of modern electrified railway and high-voltage power transmission systems. Their lightweight construction, mechanical flexibility, and resistance to pollution and environmental stress have made them a preferred choice over traditional porcelain and glass insulators. However, to ensure that these insulators continue to perform safely and reliably throughout their service life, systematic maintenance and inspection protocols are essential.
These protocols are particularly critical in urban rail transit, high-speed rail networks, and industrial power systems, where failure of an insulator can result in electrical faults, system downtime, or safety hazards. Regular inspections and proper maintenance help preserve the mechanical and electrical integrity of composite long rod insulators, prolonging service life, reducing operational costs, and minimizing unexpected failures.
This guide outlines the recommended inspection schedules, maintenance practices, testing procedures, and safety considerations for composite long rod insulators. It also emphasizes the advantages of sourcing high-quality insulators from Hebei Jiuding Electric Co., Ltd., a manufacturer renowned for engineering reliable solutions for railways and power systems worldwide.
Understanding Composite Long Rod Insulators
Structure and Function

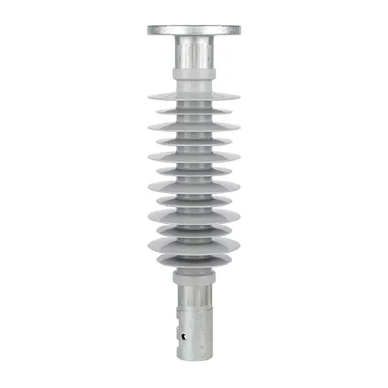

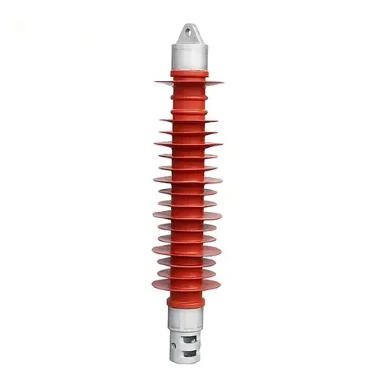

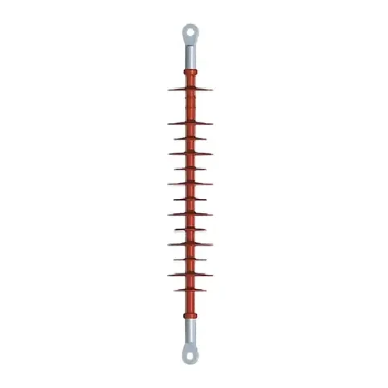

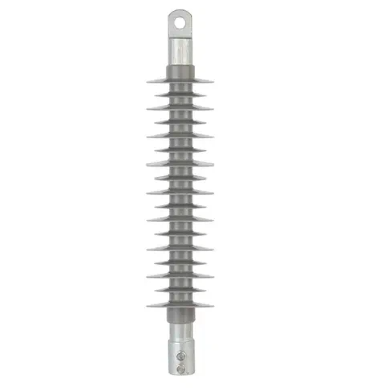

Composite long rod insulators are designed to mechanically support conductors while providing electrical isolation from grounded structures. They consist of a fiberglass-reinforced epoxy rod, surrounded by a hydrophobic polymer housing, typically silicone rubber or EPDM. The polymer sheath provides excellent resistance to water, pollution, and UV radiation, while the fiberglass core ensures high tensile strength and flexibility. Metal end fittings at both ends allow secure attachment to catenary wires, crossarms, or power line supports.
These insulators are used in high-voltage applications, including overhead railway electrification systems, transmission lines, and industrial substations. Their long rod design allows for better creepage distance, which enhances insulation performance in polluted or humid environments.
Advantages Over Traditional Insulators
Composite long rod insulators outperform traditional porcelain or glass insulators in several ways. They are lighter, reducing structural load on support poles. Their flexibility allows them to absorb vibrations and mechanical stresses without cracking, and the hydrophobic surface resists surface contamination, reducing flashover risks. Additionally, the reduced maintenance needs and ease of handling make them ideal for urban and industrial installations.
Importance of Maintenance and Inspection
Safety and Reliability
Failure of an insulator in high-voltage systems can result in flashovers, arcing, or mechanical collapse, leading to electrical outages, property damage, and safety hazards. Maintenance and inspections help detect early signs of degradation, enabling timely intervention and preventing catastrophic failures.
Performance Preservation
Regular care ensures that the insulator maintains its electrical and mechanical performance, including resistance to pollution, moisture, and environmental stress. This preserves the design lifespan of the equipment and reduces operational risks.
Regulatory Compliance
Railway and power operators must comply with safety and performance standards in each country or region. Following inspection and maintenance protocols ensures that systems remain compliant with regulatory and industry standards, avoiding legal and operational penalties.
Inspection Protocols for Composite Long Rod Insulators
Visual Inspection
Visual inspection is the first line of defense in identifying issues. Inspectors should examine each insulator for surface cracks, chips, or discoloration, check the integrity of the polymer housing, and inspect the end fittings for corrosion, loosening, or deformation. Attention should also be paid to the alignment and position of the insulator in the system, ensuring that it remains properly oriented relative to conductors and support structures.
Cleaning Requirements
While composite insulators are hydrophobic and resist contamination, polluted environments—such as industrial zones or coastal areas—may require periodic cleaning. Dirt, dust, or chemical residues can compromise performance if accumulated over time. Cleaning should be done using non-abrasive methods to preserve the hydrophobic surface and avoid damaging the polymer housing.
Mechanical Inspection
Inspectors must evaluate the mechanical integrity of each insulator. This includes checking for bending, torsion, or stress marks along the fiberglass rod and ensuring that the polymer housing remains securely bonded to the core. Fasteners, clamps, and attachments should be verified for correct torque and stability.
Electrical Testing
Electrical testing ensures that insulators maintain their dielectric strength. Recommended tests include insulation resistance measurement, leakage current testing, and high-voltage withstand tests where applicable. These tests help detect internal defects, contamination, or degradation that could compromise electrical performance.
Maintenance Procedures
Routine Maintenance Schedule
Routine maintenance should be scheduled based on environmental exposure and operational conditions. Urban rail networks with high pollution may require quarterly inspections, while industrial lines with lower exposure might suffice with semi-annual or annual checks. Regular documentation of maintenance activities helps track insulator condition and plan replacements proactively.
Preventive Maintenance
Preventive maintenance focuses on addressing minor issues before they escalate. This includes tightening loose fittings, reapplying protective coatings, and replacing worn components. Preventive care ensures long-term reliability and reduces the risk of unplanned downtime.
Emergency Maintenance
If an insulator shows signs of significant damage, such as deep cracks or broken fittings, emergency replacement is required. Composite insulators are designed for quick handling and replacement due to their lightweight construction, which minimizes downtime and allows for safe intervention even in active rail environments.
Environmental and Operational Considerations
Pollution Resistance
Urban rail corridors, industrial zones, and coastal areas expose insulators to dust, salt, and industrial pollutants. Composite insulators’ hydrophobic polymer housing reduces contamination buildup and maintains performance even under adverse conditions.
Weather and UV Exposure
Insulators must withstand temperature fluctuations, rainfall, and prolonged UV exposure. Composite materials are engineered to resist UV degradation, mechanical fatigue from thermal expansion, and moisture ingress, ensuring long-term performance.
Mechanical Load and Vibration
Rail operations produce dynamic mechanical loads on overhead lines, including vibrations and wind-induced forces. Composite long rod insulators absorb these forces without cracking, maintaining mechanical stability and electrical isolation.
Tools and Equipment for Maintenance
Maintenance teams require appropriate tools, including insulated hand tools, torque wrenches, lifting equipment for replacement, and non-abrasive cleaning tools. Personal protective equipment (PPE) is essential, including insulated gloves, hard hats, safety harnesses, and high-visibility clothing. Following safety protocols ensures that maintenance activities do not introduce electrical or mechanical risks.
Documentation and Record-Keeping
Comprehensive record-keeping is a critical part of maintenance protocols. Documenting inspection dates, observations, test results, and any corrective actions provides traceability, regulatory compliance, and planning for future interventions. Maintenance logs also allow operators to analyze trends, predict wear, and optimize replacement schedules.
Advantages of Proper Maintenance
Maintaining composite long rod insulators ensures continuous electrical performance, reduces the likelihood of unplanned outages, and extends the insulator’s service life. Properly maintained insulators also enhance passenger and worker safety in urban rail systems, ensuring operational reliability even under heavy traffic and environmental stress.
Case Studies
Urban Metro Networks
In Southeast Asia, metro networks using composite long rod insulators report fewer maintenance interventions and reduced operational disruptions compared to traditional porcelain insulators. Periodic inspections combined with preventive maintenance ensure reliable overhead catenary operation.
High-Speed Rail Lines
European high-speed rail networks utilize composite long rod insulators to withstand high mechanical loads and dynamic vibrations. Routine inspection and testing protocols have extended service life and minimized unexpected line faults, maintaining continuous safe operations.
Industrial Rail Systems
Industrial rail lines in the Middle East employ composite insulators in corrosive and high-temperature environments. Regular inspection and cleaning protocols help maintain insulation performance, protecting both equipment and personnel from electrical hazards.
Conclusion
Composite long rod insulators are critical for ensuring safety, reliability, and efficiency in urban rail and industrial electrification systems. Following a systematic maintenance and inspection protocol—including visual inspection, mechanical checks, electrical testing, and preventive care—ensures these insulators perform optimally throughout their service life. Proper documentation, environmental awareness, and adherence to safety practices further enhance reliability and reduce operational risks.
For operators and engineers seeking high-quality composite long rod insulators and professional guidance, Hebei Jiuding Electric Co., Ltd. provides durable, reliable solutions engineered for modern rail networks. Partnering with a trusted manufacturer ensures long-term performance, regulatory compliance, and continuous operational safety in electrified railway systems.
FAQ
Q: Why are composite long rod insulators preferred over traditional porcelain or glass?
A: They are lightweight, flexible, pollution-resistant, and easier to handle while maintaining high electrical and mechanical performance.
Q: What are the key maintenance steps for composite long rod insulators?
A: Regular visual inspections, mechanical and electrical testing, cleaning when necessary, and tightening or replacing fasteners ensure optimal performance.
Q: How does maintenance improve safety in rail electrification systems?
A: Proper maintenance prevents flashovers, electrical faults, and structural failures, ensuring safe and continuous operation.
Q: How often should inspections be performed on composite insulators?
A: Frequency depends on environmental conditions; highly polluted or humid areas may require quarterly inspections, while less exposed locations may suffice with semi-annual checks.
