Introduction
Why does water bead on silicone rubber? It's all about hydrophobicity. Silicone rubber resists water, crucial for insulators. In this post, you'll learn what silicone rubber is, why hydrophobicity matters, and its applications in electrical insulators.
Understanding Hydrophobicity in Silicone Rubber
Definition and Explanation of Hydrophobicity
Hydrophobicity means a material resists water. When a surface is hydrophobic, water forms beads instead of spreading out. Imagine raindrops on a waxed car—they gather into droplets and roll off easily. This happens because the material's surface repels water. Hydrophobic surfaces prevent water from sticking, which is crucial for materials used outdoors, like silicone rubber insulators.
The Role of Contact Angle in Hydrophobicity
The contact angle measures how water interacts with a surface. It’s the angle where a water droplet touches the material. If the angle is above 90°, the surface is hydrophobic; water beads up nicely. Below 90°, the surface is hydrophilic, meaning water spreads out and wets the surface. For silicone rubber, a high contact angle is vital because it stops water from forming a continuous film. This film could conduct electricity, causing problems in electrical insulators.
Hydrophobic vs. Hydrophilic Materials
Hydrophobic materials repel water. Water forms droplets, minimizing contact with the surface. Examples include silicone rubber and oils.Hydrophilic materials attract water. Water spreads out and wets the surface. Examples include paper and cotton.
This difference impacts how materials behave in wet environments. Hydrophobic silicone rubber insulators keep water from creating conductive paths, maintaining electrical insulation even in rain or fog.
Why This Matters for Silicone Rubber Insulators
Silicone rubber’s hydrophobicity helps prevent electrical leakage and flashovers on insulators. When water beads up, it reduces the risk of electrical current flowing across the insulator’s surface. This property is essential for outdoor electrical equipment exposed to harsh weather and pollution.
Mechanisms Behind Silicone Rubber's Hydrophobicity
The Role of Low Molecular Weight Siloxanes
Silicone rubber’s hydrophobicity mainly comes from low molecular weight (LMW) siloxanes inside it. These tiny molecules can move through the rubber and reach the surface. When they do, they create a thin, water-repelling layer. This layer stops water from sticking to the surface and forming a continuous film. It’s like having a natural waterproof coating that renews itself over time. If the surface gets dirty or wet, these siloxanes migrate back and restore the hydrophobicity, helping the material maintain its water resistance even after harsh weather exposure.
Surface Energy and Wetting Behavior
Surface energy is a key factor in how water interacts with silicone rubber. Silicone rubber has a low surface energy, which means water prefers to bead up rather than spread out. This behavior is essential for hydrophobicity. When water touches a low-energy surface, the droplets form tight beads because the surface “pushes” the water away. This minimizes the contact area between water and the rubber, reducing the chance of water creating a conductive path. In insulators, this prevents electrical leakage and flashover, making low surface energy a vital property.
Chemical and Physical Insights into Hydrophobicity
Chemically, the silicone rubber’s backbone consists of repeating siloxane (Si-O-Si) units with methyl groups attached. These methyl groups are non-polar and repel water. Physically, the surface roughness of silicone rubber can also influence hydrophobicity. A slightly rough surface traps air under water droplets, enhancing the beading effect. The combination of chemical composition and surface texture creates a strong hydrophobic effect.
Moreover, environmental factors can cause temporary changes. For example, pollutants or corona discharges may reduce surface hydrophobicity by disturbing the LMW siloxane layer. Fortunately, the dynamic migration of these molecules allows the surface to self-heal, gradually restoring hydrophobicity.
Factors Affecting Hydrophobicity in Silicone Rubber
Impact of Environmental Conditions
Silicone rubber's hydrophobicity can change depending on the environment. Pollution is a big factor. Dust, salt, and other pollutants stick to the surface and can lower hydrophobicity. These contaminants create spots where water can spread instead of beading up. Over time, this reduces the rubber’s ability to repel water, which is critical for insulators to work well outdoors.
Rain and fog also affect hydrophobicity. Water droplets can carry pollutants and deposit them on the rubber surface. This makes it harder for water to bead properly. However, silicone rubber has an advantage—it can transfer hydrophobicity to the pollution layer, meaning even dirty surfaces can still repel water to some extent.
Effect of Electric Fields and Temperature
Strong electric fields, like those near high-voltage lines, influence hydrophobicity too. They can cause corona discharges—tiny electrical sparks on the surface. These discharges damage the low molecular weight siloxanes responsible for water repellency. As a result, the surface loses hydrophobicity temporarily.
Temperature plays a dual role. Higher temperatures speed up the movement of siloxanes to the surface, helping the rubber recover its water-repelling ability faster. But if the heat lasts too long, it can cause the rubber to age and lose hydrophobicity permanently. So, moderate heat can help recovery, but extreme heat may cause damage.
Influence of Humidity and UV Radiation
Humidity affects hydrophobicity in two ways. High humidity encourages water films to form, which can reduce hydrophobicity. However, moisture also helps siloxanes migrate to the surface, aiding recovery. The overall effect depends on which factor dominates.
UV radiation from sunlight impacts silicone rubber differently than other materials. UV exposure can break some chemical bonds and create free radicals, but it also stimulates siloxane diffusion to the surface. This means UV can maintain or even improve hydrophobicity in silicone rubber, unlike in some polymers where UV causes hydrophilicity.
Measuring and Enhancing Hydrophobicity
Techniques for Measuring Hydrophobicity
Measuring hydrophobicity is essential to know how well silicone rubber repels water. The most common way is the contact angle measurement. This involves placing a small water droplet on the silicone rubber surface and measuring the angle between the droplet edge and the surface. A larger angle means better hydrophobicity. For example, angles above 90° show the surface resists water well.
Another method is the STRI Hydrophobicity Classification, which ranks surfaces from highly hydrophobic (HC1) to completely hydrophilic (HC7) by spraying water and observing how droplets behave. This method is practical but depends on human judgment, so results can vary.
More advanced techniques include:
Dynamic Hydrophobicity Measurement: This tracks how hydrophobicity changes over time or under conditions like UV light or pollution.
Scanning Electron Microscopy (SEM): SEM images reveal surface roughness and contamination, helping explain hydrophobic behavior.
Leakage Current Monitoring: Measures electrical current leaking across the insulator surface. More leakage often means less hydrophobicity.
Challenges in Hydrophobicity Measurement
Measuring hydrophobicity accurately can be tricky. The contact angle can change depending on how the droplet is placed or the surface condition. Surface contamination, roughness, or damage can affect results.
The STRI method's reliance on visual observation introduces subjectivity. Different inspectors might classify the same surface differently. Environmental factors during measurement, like temperature or humidity, also influence outcomes.
Additionally, silicone rubber surfaces are dynamic. The low molecular weight siloxanes that create hydrophobicity can migrate, causing hydrophobicity to vary over time or after stress. This makes consistent measurement challenging.
Methods to Enhance Hydrophobicity
Improving silicone rubber's hydrophobicity helps it perform better as an insulator. Common methods include:
Surface Modification with Coatings: Applying hydrophobic coatings like fluorinated compounds or silicone-based layers can increase water repellency.
Electron Beam Irradiation: Treating silicone rubber with electron beams, especially in the presence of glycerol, can increase contact angles by creating a network structure on the surface, enhancing hydrophobicity. This method is cost-effective and scalable.
Creating Micro/Nano Structures: Adding roughness at the microscopic level traps air under water droplets, increasing hydrophobicity. Techniques like laser etching or template replication help achieve this.
Adding Low Surface Energy Materials: Incorporating materials like silica nanoparticles or fluorinated compounds into the silicone rubber matrix lowers surface energy, improving water repellency.
Each method has pros and cons. Coatings may wear off, while surface structuring requires precise control. Electron beam irradiation is promising but needs specialized equipment.
Hydrophobicity Recovery and Maintenance
Self-Healing Mechanism of Silicone Rubber
Silicone rubber has a remarkable ability to recover its hydrophobicity after it gets damaged or contaminated. This self-healing happens mainly because of the low molecular weight (LMW) siloxanes inside the rubber. These small molecules move from the bulk to the surface, restoring the water-repelling layer. When pollution, corona discharges, or mechanical wear reduce hydrophobicity, the LMW siloxanes migrate back, renewing the surface’s water resistance. This dynamic migration ensures the material maintains performance over time, even in harsh outdoor conditions.
Besides molecular migration, polymer chain reorientation can help. After surface damage, the silicone chains can rearrange themselves to expose hydrophobic groups, improving water repellency. This natural repair process is vital for insulators exposed to varying weather and electrical stresses.
Challenges in Hydrophobicity Recovery
Despite its self-healing properties, silicone rubber faces some challenges in fully recovering hydrophobicity:
Heavy Pollution: Thick layers of dirt or salt can trap water and block siloxane migration. This leads to persistent wetting spots that reduce insulation performance.
Prolonged UV Exposure: Long-term ultraviolet radiation may break down polymer chains, weakening the material's ability to restore hydrophobicity.
Mechanical Damage: Abrasion, cracks, or surface wear can physically block siloxane movement or destroy the surface structure needed for water repellency.
High Electric Field Stress: Continuous corona discharges can degrade the hydrophobic layer faster than it can recover.
These factors may cause the hydrophobicity to degrade over time, requiring maintenance or replacement.
Strategies for Maintaining Hydrophobicity
To keep silicone rubber insulators hydrophobic and reliable, several strategies can be applied:
Regular Cleaning: Removing pollutants helps prevent water films forming and allows siloxanes to migrate effectively.
Surface Treatments: Applying hydrophobic coatings or surface modifications can protect the rubber and enhance recovery speed.
Material Formulation: Adding silicone-based additives can improve the hydrophobic recovery rate and durability.
Environmental Management: Minimizing exposure to harsh UV or corrosive pollutants can extend hydrophobic performance.
Routine Inspections: Monitoring contact angles and leakage currents helps detect early hydrophobicity loss for timely intervention.
By combining these approaches, utilities and manufacturers can ensure silicone rubber insulators maintain their water-repelling properties longer, reducing failure risks and maintenance costs.
Applications and Benefits of Hydrophobic Silicone Rubber
Use in Outdoor Electrical Insulators

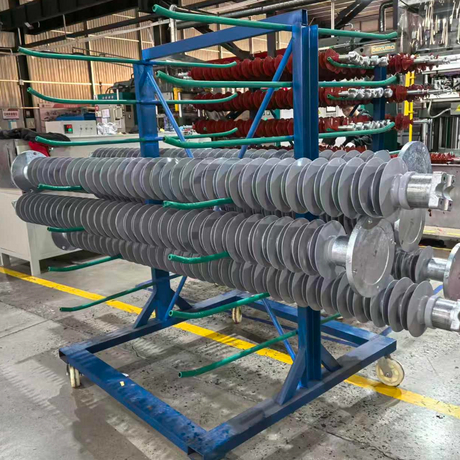

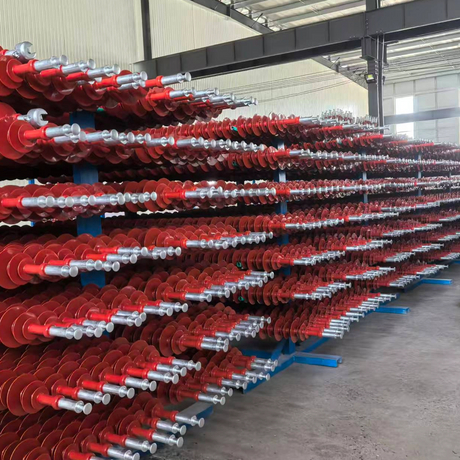

Hydrophobic silicone rubber plays a crucial role in outdoor electrical insulators. These insulators are exposed to rain, fog, pollution, and other harsh weather conditions. Thanks to its water-repelling surface, silicone rubber prevents water from forming continuous films that can conduct electricity. Instead, water beads up and rolls off, helping insulators maintain their electrical resistance. This property reduces leakage currents and lowers the risk of flashover, which can cause power outages or equipment damage.
Silicone rubber insulators are widely used in high-voltage power lines, substations, and transmission towers. Their hydrophobicity ensures reliable performance even in polluted or coastal areas where salt and dirt accumulate. The ability to repel water helps maintain insulation quality, extending service life and reducing maintenance costs.
Longevity and Reliability in Harsh Environments
The hydrophobic nature of silicone rubber contributes significantly to its longevity and reliability. Water repellency prevents moisture absorption, which can degrade insulation over time. It also reduces the buildup of contaminants that attract moisture and promote electrical discharges.
Silicone rubber's self-healing ability, due to migrating low molecular weight siloxanes, allows it to recover hydrophobicity after damage or contamination. This dynamic recovery is vital in outdoor settings where insulators face UV radiation, temperature changes, and pollution. It means the material can maintain its protective properties longer than many alternatives.
Moreover, silicone rubber resists aging caused by UV rays and temperature extremes better than many other polymers. Its hydrophobic surface reduces the risk of surface erosion and electrical tracking, common causes of insulator failure. This durability translates to fewer replacements and more stable power delivery.
Comparison with Other Polymeric Materials
Compared to other polymers used in insulators, silicone rubber stands out for its superior hydrophobicity and weather resistance. Materials like ethylene propylene diene monomer (EPDM) or epoxy resins may initially repel water but often lose this property under prolonged environmental stress.
Silicone rubber maintains a higher contact angle over time, meaning it stays more water-repellent. Its ability to transfer hydrophobicity to pollution layers also gives it an edge, keeping surfaces dry even when dirty. Other polymers usually become hydrophilic when contaminated, increasing risk of leakage currents.
Additionally, silicone rubber’s flexibility and thermal stability allow it to withstand mechanical stresses and temperature fluctuations better than many alternatives. This combination of properties makes it the preferred choice for modern outdoor insulators, especially in high-voltage and harsh environment applications.
Conclusion: The Future of Silicone Rubber in Insulators
Hydrophobicity in silicone rubber is crucial for outdoor electrical insulators, preventing water-related electrical issues. This characteristic extends service life and reduces maintenance. Future innovations will enhance silicone rubber's hydrophobic properties, ensuring reliable performance in harsh environments. Silicone rubber's self-healing ability and weather resistance make it superior to other polymers. JD-Electric's silicone rubber insulators offer exceptional durability and reliability, providing significant value in maintaining stable power delivery under challenging conditions. JD-Electric's commitment to quality ensures these insulators meet the demands of modern electrical systems.
FAQ
Q: What makes composite insulator silicone rubber hydrophobic?
A: Composite insulator silicone rubber is hydrophobic due to low molecular weight siloxanes that migrate to the surface, creating a water-repelling layer.
Q: How does hydrophobicity benefit composite insulator silicone rubber?
A: Hydrophobicity in composite insulator silicone rubber prevents water films, reducing electrical leakage and flashover risks in harsh environments.
Q: Can composite insulator silicone rubber lose its hydrophobicity?
A: Yes, factors like pollution, UV exposure, and mechanical wear can temporarily reduce hydrophobicity, but silicone rubber can self-heal over time.
