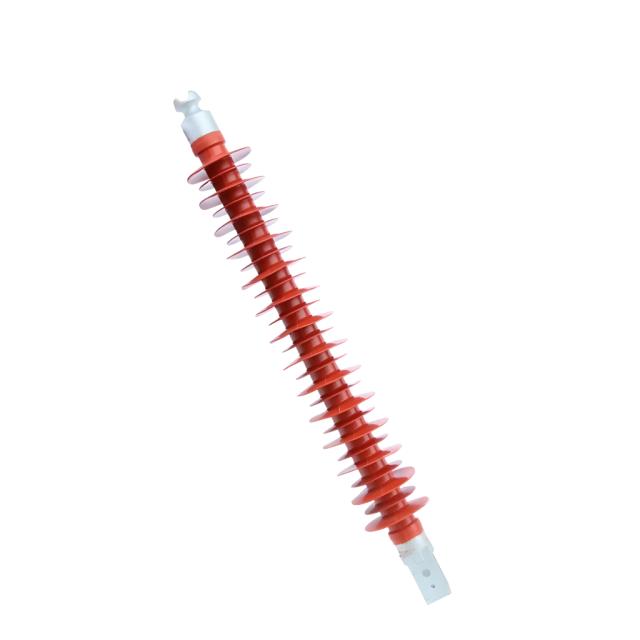

What Loads Must an Insulated Cross Arm Withstand?

Upgrading transmission and distribution networks frequently demands greater capacity within existing right-of-way limits. The Insulated Cross Arm acts as a critical solution for voltage uprating and tower compaction. Unlike traditional steel or wood components, these modern variants must perform dual roles. They handle intense mechanical stress while functioning as the primary electrical insulator. Failing to accurately calculate operating loads often leads to catastrophic mechanical failure or severe electrical faults. This guide provides utility planners, procurement engineers, and line designers a clear, standard-aligned framework. You will learn how to evaluate the mechanical and electrical loads these components endure. We aim to ensure you achieve reliable specification, safe network expansion, and effective risk mitigation in your upcoming overhead line projects.

Key Takeaways

• An insulated cross arm must withstand three primary mechanical forces: vertical (weight/ice), transverse (wind/angles), and longitudinal (tension/broken wires).
• Specification requires calculating the Maximum Design Cantilever Load (MDCL) and applying appropriate safety factors based on IEC or ANSI standards.
• Electrical stress and environmental degradation (pollution, UV) directly impact the long-term mechanical reliability of the composite post insulator components.
• Successful procurement relies on evaluating manufacturer test data against specific operational environments, not just baseline catalog specifications.

The Engineering and Business Case for Insulated Cross Arms

Utilities face intense pressure to uprate overhead line voltages. Transitioning a corridor from 66kV to 132kV requires significantly larger electrical clearances. Acquiring new right-of-way land is highly restrictive. Rebuilding entire steel tower corridors is often too slow and disruptive.

Replacing traditional lattice steel arms and hanging suspension insulators offers a powerful alternative. Integrating an insulated cross arm effectively reduces the overall tower footprint. It physically restricts conductor swing, also known as blowout. This rigid geometry allows you to push higher voltages through narrower corridors. It also significantly cuts the visual impact of overhead structures in residential zones.

A successful field deployment hinges on strict engineering balance. Planners cannot simply bolt new components onto aging structures. You must achieve specific technical milestones to ensure grid stability.

• Mechanical Rigidity: The assembly must maintain strict phase-to-ground clearances under extreme wind events.
• Dielectric Strength: The housing must offer adequate creepage distance for the targeted upgraded voltage.
• Tower Integrity: The upgraded conductor setup cannot exceed the existing base bending moments of the steel tower.
• Vibration Damping: The system must resist aeolian vibration transferring from the cables into the pole attachments.

Primary Mechanical Loads in Transmission and Distribution

Line designers must map every physical force acting on the upgraded structure. Modern structural analysis software, like PLS-CADD, helps model these stresses. We break these down into three primary categories.

1. Vertical Loads (Weight & Ice) These downward forces represent a constant, unrelenting baseline stress. The unit must safely support the static weight of the conductor bundle. It also holds mounting hardware, suspension clamps, vibration dampers, and its own mass. Dynamic environmental additions change this baseline dramatically. Heavy ice accretion and wet snow loads vary by geographic zone. Utilities in northern climates must account for radial ice thickness building up on the cables. This added winter weight can easily double or triple the downward bending force on the attachment base.
2. Transverse Loads (Wind & Line Deviation) Transverse forces push horizontally across the line route. Extreme wind pressure acts directly on the conductors across the entire wind span. The physical profile of the cross arm itself catches wind pressure too. Radial loads occur when you install the unit on angle towers. Line deviation forces push the arm outward or inward. Planners must calculate extreme wind scenarios based on historical meteorological data. These transverse forces dictate the required cantilever strength of the fiberglass core.
3. Longitudinal Loads (Tension & Broken Wire Conditions) Cables pull in both directions along the right-of-way. Normal operation sees minor tension differentials between adjacent spans. Elevation changes and unequal span lengths cause these everyday imbalances. Exceptional longitudinal loads present the most severe mechanical threat. Stringing operations apply sudden, unbalanced pulling forces during construction. Extreme "broken wire" scenarios create severe asymmetric torsion and bending moments. When a phase conductor snaps, the remaining cable tension snaps back violently. The arm must absorb this shock without shattering.

Table: Primary Load Profiles and Structural Impacts

Load Category	Primary Source	Extreme Scenario	Structural Impact on Cross Arm
Vertical Load	Conductor mass, hardware, snow	Radial ice buildup during winter storms	Downward bending, sheer stress at base
Transverse Load	Wind pressure, line angles	Hurricane-force winds on angle towers	Horizontal cantilever bending, base torque
Longitudinal Load	Unequal span tension	Broken phase conductor (snapped wire)	Violent torsion, asymmetrical twisting

Electrical Stresses on a High Voltage Insulated Cross Arm

Mechanical strength is only half the engineering equation. A high voltage insulated cross arm constantly endures severe electrical field stress. Failing to account for these dielectric demands leads to rapid component breakdown.

First, consider continuous phase-to-ground insulation. The core and silicone housing must prevent flashovers under normal operating conditions. You must evaluate the expected system voltage accurately. Selecting the correct Basic Insulation Level (BIL) is mandatory. The BIL dictates how the unit handles transient overvoltages. These dangerous spikes originate from lightning strikes or grid switching surges.

Environmental and pollution factors complicate this insulation barrier. Airborne contaminants settle on the silicone housing over time. Coastal salt spray, agricultural dust, and industrial emissions are major culprits. When moisture from fog or light rain mixes with these contaminants, problems begin. This conductive layer leads to surface tracking, dry band arcing, and material erosion. The housing must utilize hydrophobic materials to bead water and break this conductive path.

Electromechanical interaction represents a complex degradation pathway. Continuous electrical stress slowly impacts the structural integrity of the Fiber Reinforced Polymer (FRP) core. Unmitigated high electrical fields can cause localized heating near the end fittings. Over a 30-year lifespan, prolonged corona discharge degrades the protective rubber housing. Once the housing fails, moisture penetrates the internal FRP core. This moisture ingress leads to brittle fracture and catastrophic mechanical collapse.

Best Practice: Always specify corona rings or grading rings for applications above 110kV. These metal rings smooth the electrical field gradient. They prevent focused electrical stress from chewing through the silicone seal at the attachment point.

Key Evaluation Criteria for Specifying and Shortlisting

Utility buyers cannot rely solely on basic catalog numbers. Rigorous specification ensures grid reliability and public safety. You must look deeper into the manufacturing and testing protocols.

Standard compliance forms your technical baseline. Demand verifiable test reports from independent laboratories. For any composite post insulator component, IEC 61952 provides essential testing guidelines. Insulated cross arms often follow specific CIGRE or IEEE engineering frameworks. Do not accept internal factory reports as the only proof of compliance. Third-party validation proves the design can handle stated extremes.

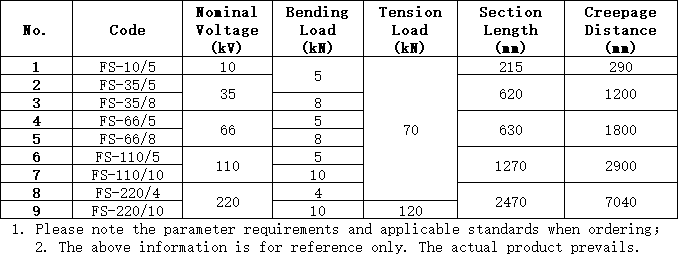

Load ratings and safety factors require meticulous review. Engineers must evaluate the Specified Cantilever Load (SCL). You then calculate the Maximum Design Cantilever Load (MDCL) for your exact tower geometry. Ensure the manufacturer’s safety margins align precisely with local utility standards. An underspecified unit will bend excessively or snap under winter ice.

Material quality determines long-term field performance. Assess the FRP pultrusion quality carefully. The fiberglass core provides all mechanical strength. It must be completely void-free to prevent internal moisture tracking. Evaluate the High-Temperature Vulcanized (HTV) silicone rubber housing next. High-quality HTV silicone ensures long-term hydrophobicity and superior tracking resistance.

Finally, distinguish between distribution and transmission requirements. A distribution insulated cross arm often prioritizes standardization. Utilities want quick, repeatable installations across thousands of timber or concrete poles. Conversely, transmission components demand highly customized mechanical modeling. Extra-high voltage applications require specific end fittings, specialized mounting brackets, and exact structural matching.

Implementation Risks and Installation Realities

Field deployment introduces unique physical challenges. Engineering models must translate successfully to real-world lineman operations. Planners must address these risks before fleet-wide rollout.

Deflection limits remain a primary engineering concern. Polymeric composite materials are inherently more flexible than rigid steel. Excessive deflection under heavy load alters the geometry of the tower top. This bending can dangerously compromise phase-to-ground clearances. It can also reduce phase-to-phase distances mid-span. Modeling precise deflection curves under maximum expected load is non-negotiable. Utilities must verify these deflection limits against their local safety codes.

Handling vulnerabilities dictate strict installation protocols. The FRP core and silicone housing are highly sensitive to physical abuse. They can suffer micro-cracking or tearing if dropped on rough terrain. Improper rigging methods bend the core beyond its elastic limit. Over-torquing mounting bolts crushes the fiberglass structure. Crews require specific handling training for these composite materials. They must use nylon slings instead of steel chains during lifting.

Hardware compatibility issues often surface during retrofits. Mounting brackets and end fittings face severe weather exposure year-round. There is a high risk of galvanic corrosion if metals are mismatched at the pole interface. Mechanical wear at the attachment points degrades the connection over time. Always ensure vendor-supplied hardware perfectly matches existing tower geometries.

Common Mistake: Forcing a mismatched bracket onto an older steel lattice tower induces pre-stress into the fiberglass base. This pre-stress dramatically lowers the breaking threshold during a subsequent wind storm.

Your best next-step action is a phased rollout. Initiate pilot testing on non-critical, redundant lines. Use this phase to validate installation procedures, verify mechanical performance, and check hardware alignment. Gather feedback directly from the installation crews before expanding the deployment.

Conclusion

Specifying these advanced components is not a simple one-to-one substitution for steel. Planners must conduct a holistic evaluation of vertical, transverse, and longitudinal loads. You must pair these mechanical demands with severe environmental and electrical stresses. Ignoring the interplay between physical weight, wind pressure, and high voltage fields invites system failure.

Base all purchasing decisions on rigorous, third-party validated load testing following IEC or ANSI standards. Demand clear evidence of material durability against UV degradation and pollution tracking. Prioritize vendors who offer comprehensive load-deflection modeling tailored specifically to your existing tower structures. Taking these exact steps ensures long-term reliability, grid safety, and a highly successful network uprate.

FAQ

Q: How does the mechanical strength of a composite post insulator compare to a traditional steel cross arm?

A: While steel is inherently more rigid, composite insulators offer high tensile and cantilever strength tailored for specific load paths. They are much lighter and effectively prevent conductor blowout. However, they exhibit greater flexibility under heavy loads. This engineered deflection must be factored into your clearance calculations to ensure safe phase-to-ground distances under maximum wind and ice conditions.

Q: What happens to an insulated cross arm during a broken wire scenario?

A: It experiences sudden, extreme longitudinal and torsional loads. Quality cross arms are engineered with specific safety margins to bend without core failure. The fiberglass core absorbs the kinetic energy through controlled deflection. While they avoid snapping, they may require detailed visual inspection or complete replacement post-event to guarantee ongoing structural integrity.

Q: Are insulated cross arms suitable for heavy icing environments?

A: Yes, provided the vertical load calculations include maximum historical ice accretion data. Engineers must select a core diameter capable of supporting this extreme static weight. Additionally, the silicone shed profile is specifically designed with alternating diameters to prevent continuous ice bridging, maintaining essential creepage distance even during severe winter storms.

Q: What is the typical lifespan under continuous mechanical and electrical load?

A: With UV-resistant high-temperature vulcanized silicone rubber and a perfectly sealed FRP core, standard lifespans range from 25 to 40 years. This longevity is heavily dependent on proper installation practices, absence of handling damage, and local pollution severity. Regular infrared inspections help verify that continuous electrical stress is not degrading the internal materials.
