In high-voltage (HV) power systems, surge arresters are critical components that protect equipment from transient overvoltages caused by lightning strikes, switching operations, and other disturbances. These overvoltages can lead to insulation breakdown and equipment failure if not properly managed. Specifically, 132kV surge arresters are designed to safeguard HV transmission networks and substations, ensuring system reliability and longevity.
Advanced Design Features of 132kV MOA (Metal Oxide Arrester)
Gapless Zinc Oxide Technology
Modern 132kV surge arresters utilize gapless metal oxide technology, primarily employing zinc oxide (ZnO) varistors. Unlike traditional gapped arresters, which rely on spark gaps to initiate conduction, gapless designs allow for continuous voltage monitoring and immediate response to overvoltage events. This results in faster operation and improved protection for electrical equipment.
Core Components
ZnO Varistors: These are the heart of the arrester, exhibiting highly non-linear voltage-current characteristics that enable them to conduct surge currents effectively while maintaining high resistance under normal operating conditions.
Insulating Housing: Provides mechanical support and environmental protection for the internal components.
End Fittings: Facilitate secure mechanical and electrical connections within the power system.
Housing Types: Porcelain vs. Polymer
Porcelain Housing: Known for its mechanical strength and durability, porcelain has been a traditional choice for surge arrester housings. It offers excellent resistance to UV radiation and weathering.

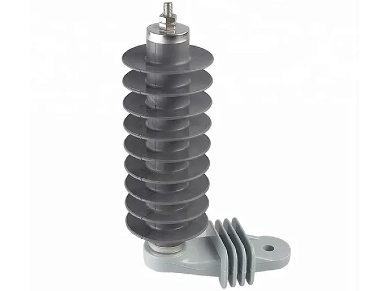

Polymer Housing: Made from silicone rubber or other composite materials, polymer housings are lightweight and offer superior hydrophobic properties. They perform better in polluted environments and are less prone to breakage. Additionally, polymer-housed arresters are often more compact, facilitating easier installation.
Electrical and Mechanical Specifications
Rated Voltage and Discharge Capability
A Surge Arrester designed for 132kV systems must meet stringent performance standards to ensure reliable operation under normal and abnormal conditions. These devices are typically rated for voltages up to 170kV, offering a sufficient safety margin above the system’s nominal voltage. This ensures the arrester can withstand overvoltage events without compromising the system's insulation or functionality.
One of the critical performance aspects of a Surge Arrester is its discharge capability. Surge arresters are engineered to handle extremely high currents during transient events, such as lightning strikes or switching surges. Advanced models of 132kV surge arresters are capable of discharging surge currents ranging from 10kA to over 20kA, depending on the specific requirements of the installation. Some heavy-duty applications may even require surge arresters rated for 40kA or 65kA class performance, particularly in areas with high lightning density or where switching operations are frequent.
The energy handling capability is another vital metric, measured in kilojoules per kilovolt (kJ/kV), which indicates the amount of energy the Surge Arrester can safely absorb during an overvoltage event without suffering damage. Proper sizing according to energy absorption and discharge capacity ensures long-term protection of valuable electrical infrastructure.
Temporary Overvoltage (TOV) and Residual Voltage
Temporary Overvoltage (TOV) events can occur during abnormal power system conditions, such as unbalanced loads, ground faults, or system islanding. A high-performance Surge Arrester must be capable of withstanding these TOV conditions for a specified duration without degradation in its insulating and conducting properties.
The key specification here is the Maximum Continuous Operating Voltage (MCOV), which is the maximum voltage the arrester can endure continuously under normal conditions. For a 132kV class system, the MCOV of the surge arrester is generally designed to be slightly below the rated voltage but high enough to prevent false operation during voltage fluctuations. This ensures the arrester remains in a non-conducting state under normal service voltage, but activates instantly when a true overvoltage condition occurs.
Another critical parameter is the residual voltage, which is the voltage that remains across the arrester’s terminals while it is conducting a surge. A lower residual voltage means the Surge Arrester is more effective in clamping the overvoltage and limiting the electrical stress experienced by downstream equipment. Modern surge arresters use zinc oxide (ZnO) varistors with highly non-linear V-I characteristics, enabling sharp transitions from insulating to conducting states and minimizing residual voltage during surge events.
Mechanical Strength
The mechanical durability of a Surge Arrester is just as important as its electrical performance, especially for installations in challenging outdoor environments. Arresters must endure mechanical stresses caused by wind loading, seismic vibrations, snow accumulation, and even accidental mechanical impacts.
Traditional porcelain-housed surge arresters are known for their high compressive strength and resistance to UV exposure, but they are also heavy and brittle, making them more susceptible to damage during transportation or seismic events. On the other hand, polymer-housed surge arresters made from materials like silicone rubber or EPDM offer enhanced mechanical resilience. These lightweight units are easier to handle and install and are also more resistant to impact and vandalism. Their hydrophobic properties also make them ideal for use in high-pollution or high-humidity environments, where surface contamination could otherwise lead to flashover.
Moreover, many polymer-housed surge arresters are designed with high short-circuit strength, enabling them to safely contain internal pressure and avoid fragmentation in the event of a fault-induced failure. Their flexible construction and internal arc-quenching mechanisms further enhance safety for nearby personnel and equipment.
In summary, the Surge Arrester used in a 132kV system must offer a balanced combination of electrical endurance and mechanical toughness. Rated voltage, discharge current capability, TOV withstand levels, and residual voltage performance all contribute to the device’s effectiveness in protecting valuable power infrastructure. Meanwhile, mechanical strength ensures the arrester remains reliable and safe under a wide range of environmental conditions and operational stresses.
Key Application Scenarios
HV Substations
In substations, 132kV surge arresters protect critical equipment like transformers, circuit breakers, and busbars from overvoltages. They are strategically placed to intercept surges entering the substation, ensuring the safety and reliability of the entire system.
Transformer Protection
Transformers are vital and expensive components in power systems. Surge arresters installed on transformer terminals prevent overvoltages from causing insulation failure, thereby extending the transformer's service life.

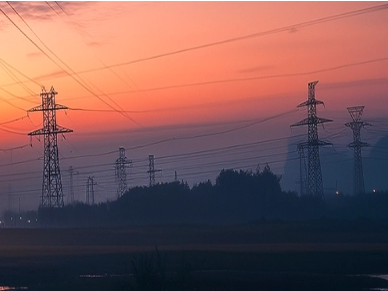

Transmission Lines
Surge arresters are deployed along transmission lines, particularly at termination points and junctions, to protect against lightning-induced surges. They help maintain the integrity of the transmission network and prevent outages.
GIS (Gas-Insulated Switchgear) Systems
In GIS applications, compact surge arresters are integrated within the switchgear to protect internal components from overvoltages. Their compact size and high performance make them ideal for space-constrained environments.
Wind and Solar Farms
Renewable energy installations are often located in areas prone to lightning strikes. 132kV surge arresters are used to protect inverters, transformers, and other equipment in wind and solar farms, ensuring continuous and reliable power generation.
Installation Guidelines
Site Selection
Proper site selection is crucial for the effective operation of surge arresters. They should be installed as close as possible to the equipment they protect to minimize the length of the connection leads, which can introduce inductance and reduce effectiveness.
Grounding and Safety Clearances
Effective grounding is essential for the safe operation of surge arresters. They must be connected to a low-resistance ground to ensure that surge currents are safely dissipated. Adequate safety clearances must be maintained to prevent flashovers and ensure personnel safety.
Compliance with Standards
Installation should comply with relevant international standards, such as IEC 60099-4 and IEEE C62.11, which provide guidelines on performance requirements and testing procedures for surge arresters.
Maintenance and Inspection
Routine Inspection Intervals
Although modern surge arresters are designed for long service life with minimal maintenance, periodic inspections are recommended to ensure ongoing reliability. Inspection intervals may vary based on environmental conditions and manufacturer recommendations.
Visual Inspection
Regular visual inspections can identify signs of contamination, physical damage, or discharge traces. Any abnormalities should be addressed promptly to prevent failure.
Electrical Testing
Periodic electrical testing, such as measuring insulation resistance and leakage current, helps assess the arrester's condition. An increase in leakage current may indicate deterioration and the need for replacement.
Replacement Indicators and Lifecycle Considerations
Surge arresters have a finite service life. Indicators such as increased leakage current, physical damage, or failure to operate during surge events suggest that replacement is necessary. Manufacturers often provide guidelines on expected service life and replacement criteria.
Conclusion
132kV surge arresters are indispensable for protecting high-voltage power systems from transient overvoltages. Their advanced design, incorporating gapless zinc oxide technology, ensures rapid response and reliable protection. By selecting appropriate surge arresters and adhering to proper installation and maintenance practices, utilities and engineers can enhance system reliability and safeguard critical infrastructure.
For high-quality surge protection solutions tailored to various voltage levels and field conditions, consider reaching out to reputable manufacturers such as Hebei Jiuding Electric Co., Ltd. Their expertise and product offerings can provide the necessary protection for your power systems.
